Ceiling Mount for TVs 43″ to 75″

Name: ERMCL1-01B
SKU: ERMCL1-01B
Availability: InStock

ERMCL1-01B

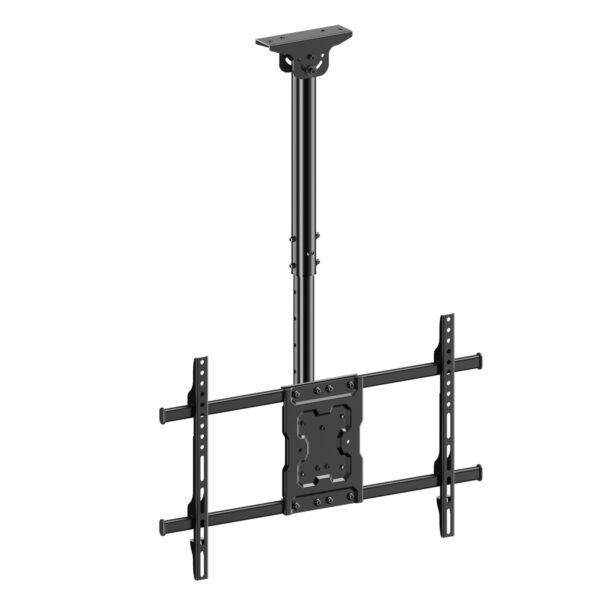

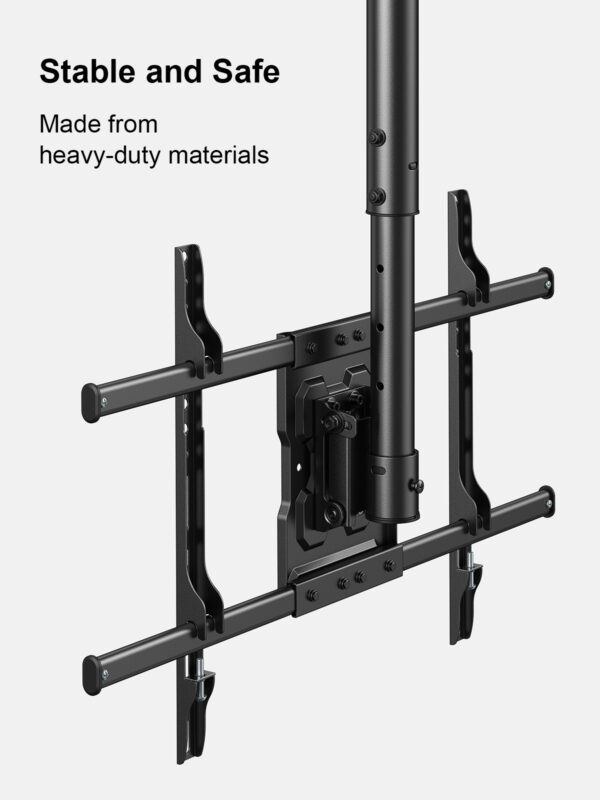

ERMCL1-01B Ceiling TV Mount
Secure, adjustable, and designed for the perfect view.

The ERMCL1-01B ceiling mount is designed to fit most 43″ to 75″ TVs up to 132 lbs. With smooth tilt and swivel adjustments, it reduces glare and delivers the best viewing angle from anywhere in the room. Nine inches of height adjustment lets you position your TV exactly where you want it, while post-installation leveling ensures a straight, professional finish. Safety tested and UL certified for peace of mind.

Key Features:

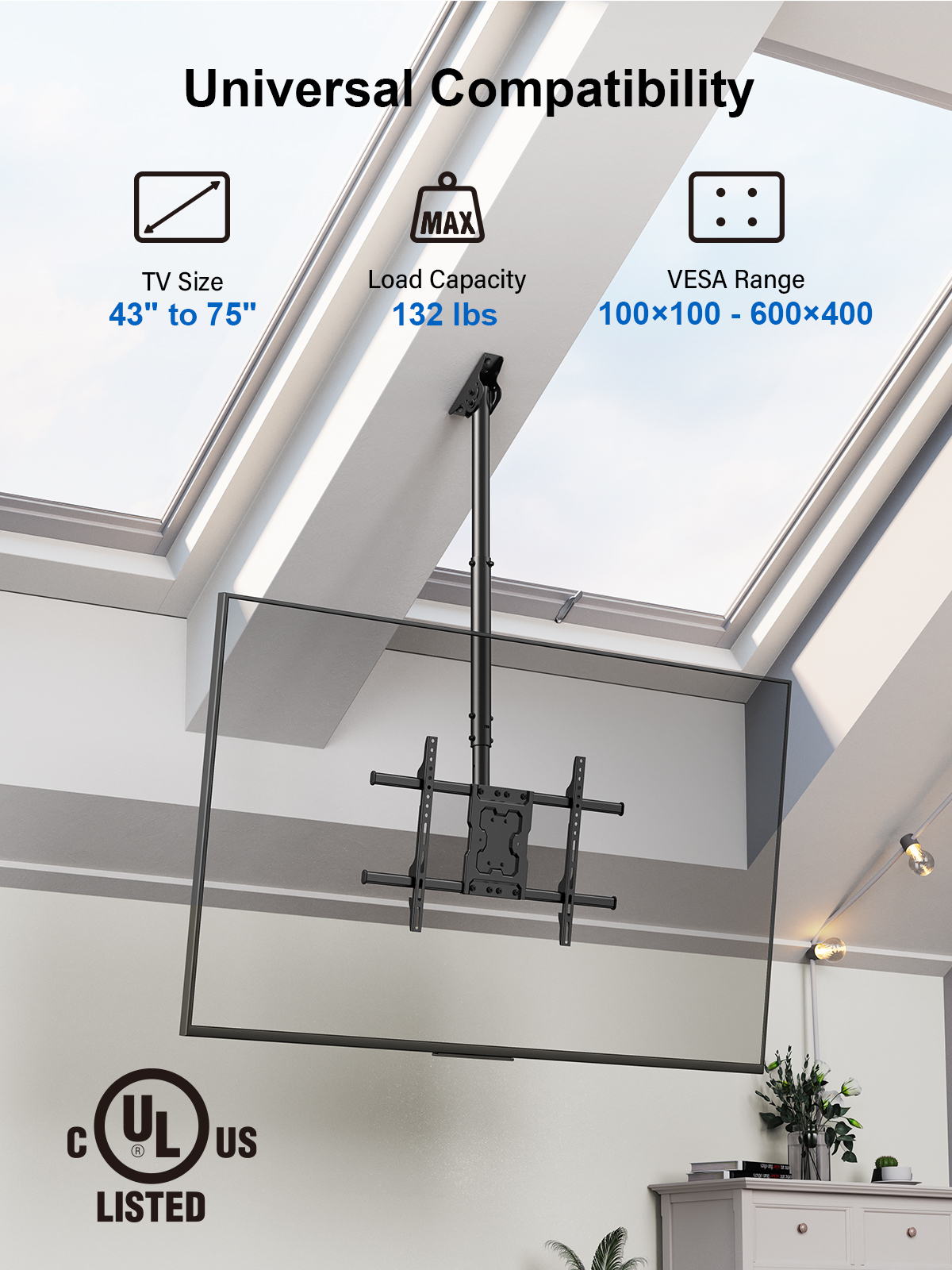

Universal Compatibility: Fits most 43″–75″ TVs with VESA patterns from 200 x 100 mm to 600 x 400 mm, up to 132 lbs.

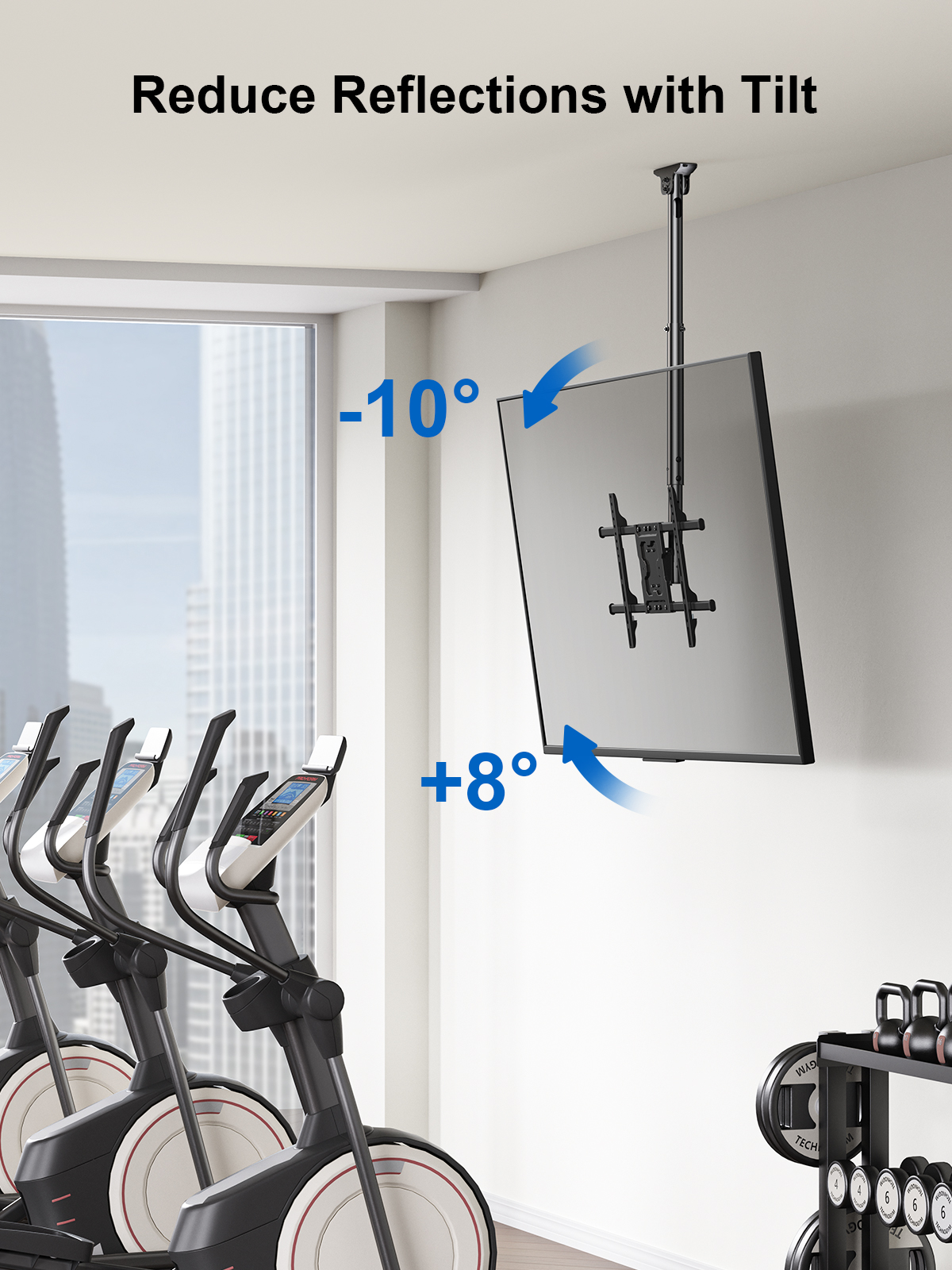

Tilt & Swivel Adjustments: Reduce screen glare and find the ideal viewing angle.

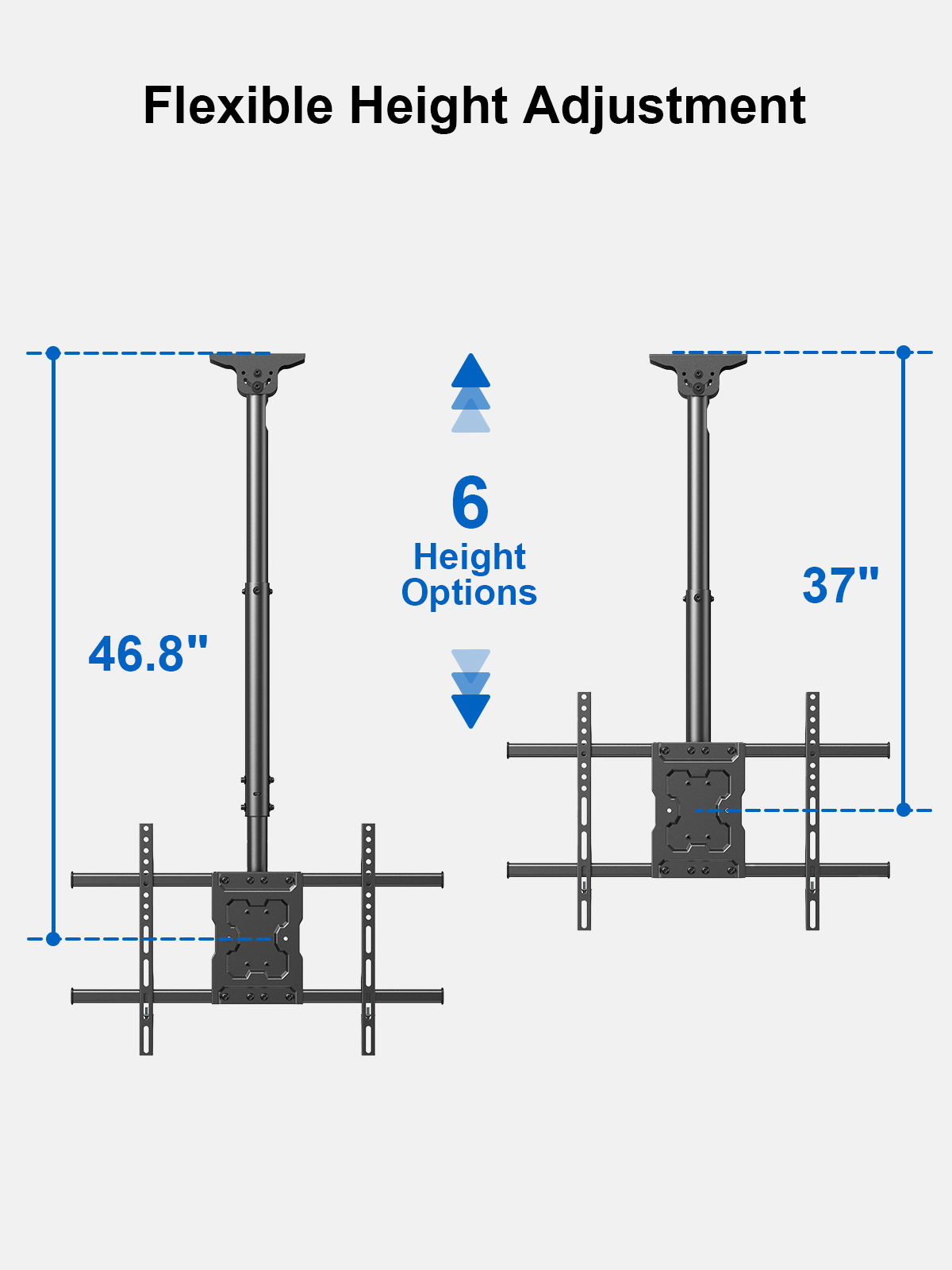

Height Adjustable: 9″ of vertical movement to achieve the perfect height.
Post-Install Leveling: Fine-tune your TV’s alignment after mounting.
Hassle-Free Installation: Includes step-by-step instructions and a universal hardware kit.

$139.99

Cable Management and Access

Ease of Install

Height Adjustment

Minimal Reflections

Post Install Adjustments

Seating Locations

UL Listed Certification

TV Size Range	43" – 75"
Weight Capacity	132 lbs.
VESA Pattern Min	100 x 100
VESA Pattern Max	600 x 400
Product Dimensions	26.5" x 38.15" x 4.47"
Depth	N/A
Extension	N/A

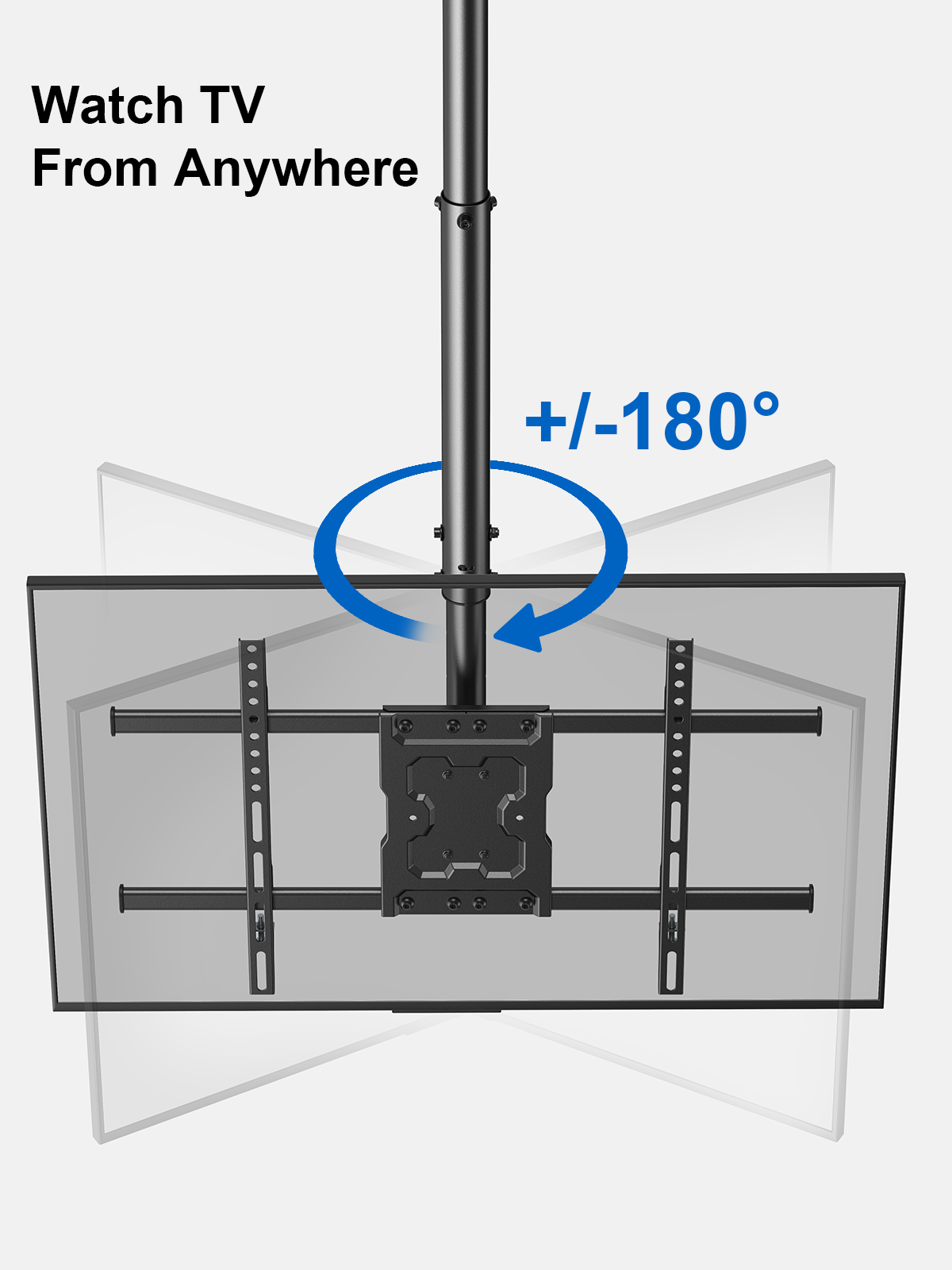

Swivel Range	360 °, Ceiling Bracket 128 °
Tilt Range	+8°/ -10 °
Level Adjustment	+/- 3°
Height Adjustment	9"
Height Adjustment Positions	6
Cable Management	Yes
Stud Spacing	Single Beam
Supported Surfaces	Ceiling Joist, Concrete
Package Dimensions	17.2 x 6.9 x 4.5 in
UL Listed	Yes
UPC	810082200133
Color	Black

ERMCL1-01B Installation Manual

ERMCL1-01B Technical Drawing

ERMCL1-01B Sell Sheet
