Motion Mount with Dual Arms for TVs 43″ to 75″

ERMML1-01B

The ERMML1-01B motion mount fits most TVs 43″ to 75″ and up to 132 lbs. This mount extends 24.2″ from the wall and can be swiveled left or right and tilted, making it possible for you to get optimal viewing in any seating location. Level adjust allows the TV to be properly leveled after installation. Horizontal shift allows TV to be moved horizontally on wall plate to allow optimal placement on wall. Safety tested and UL certified.

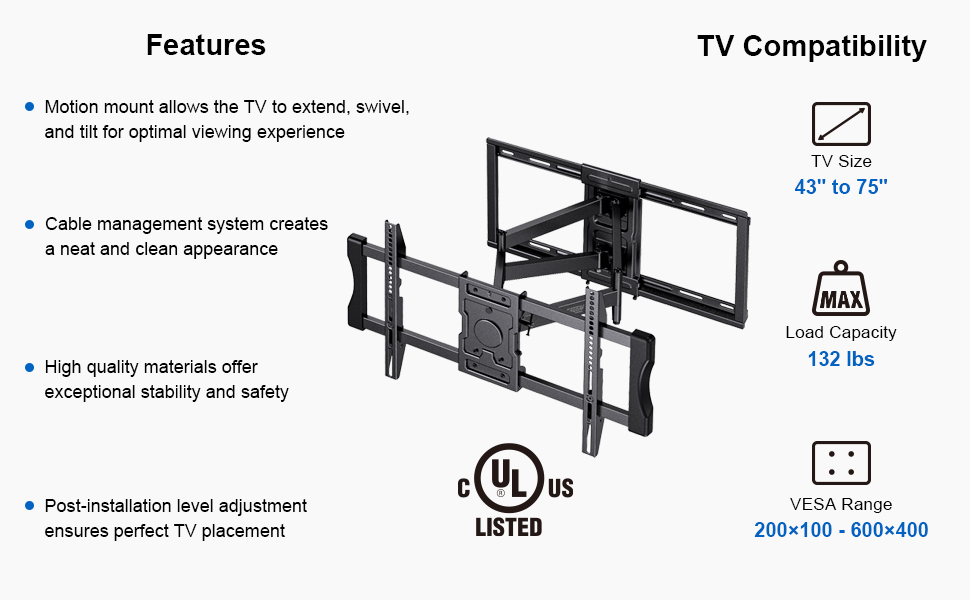

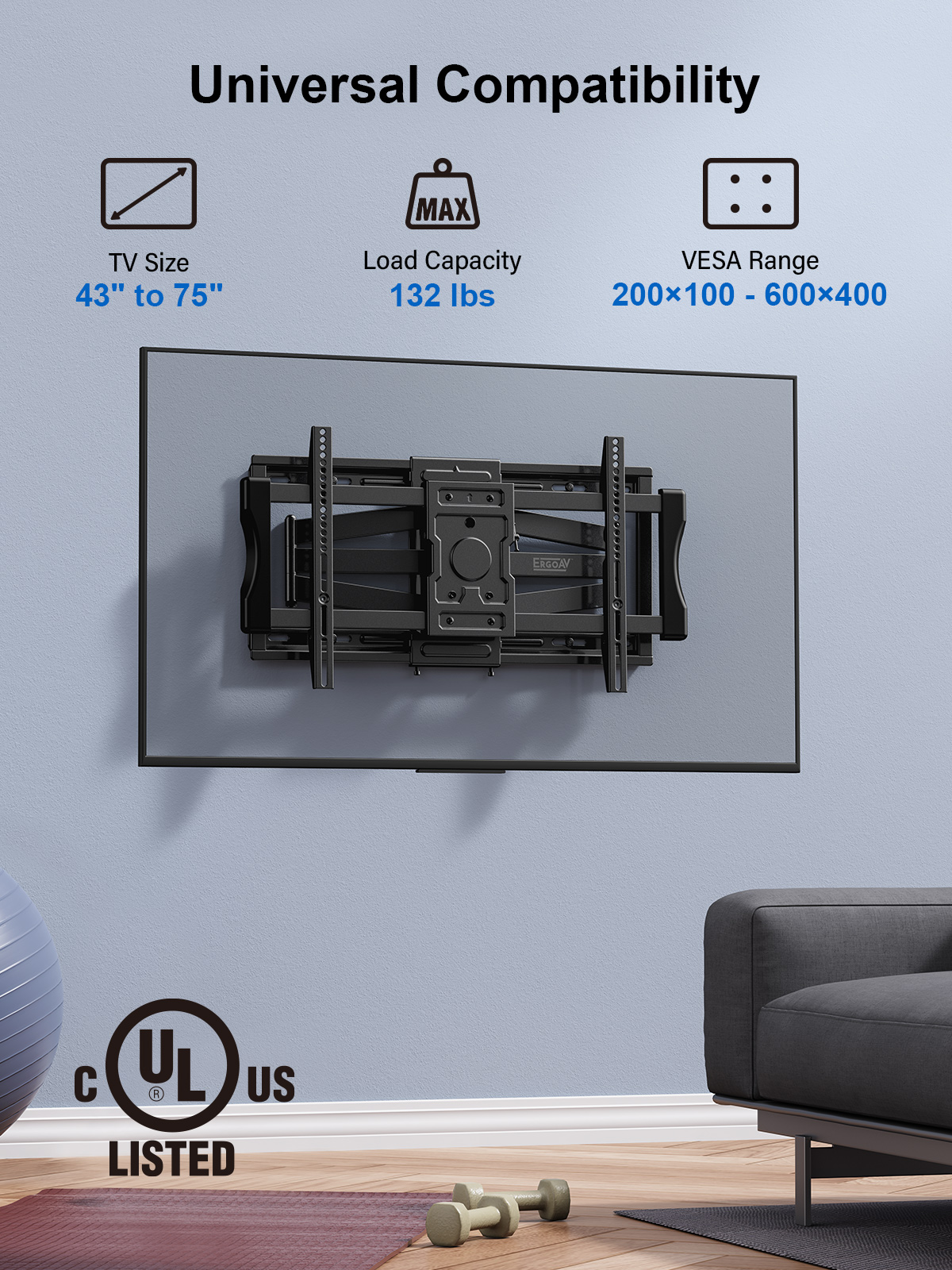

Universal Compatibility – Fits most TVs 43-75″ with VESA pattern from 200 x 100mm to 600 x 400mm weighing up to 132 lbs

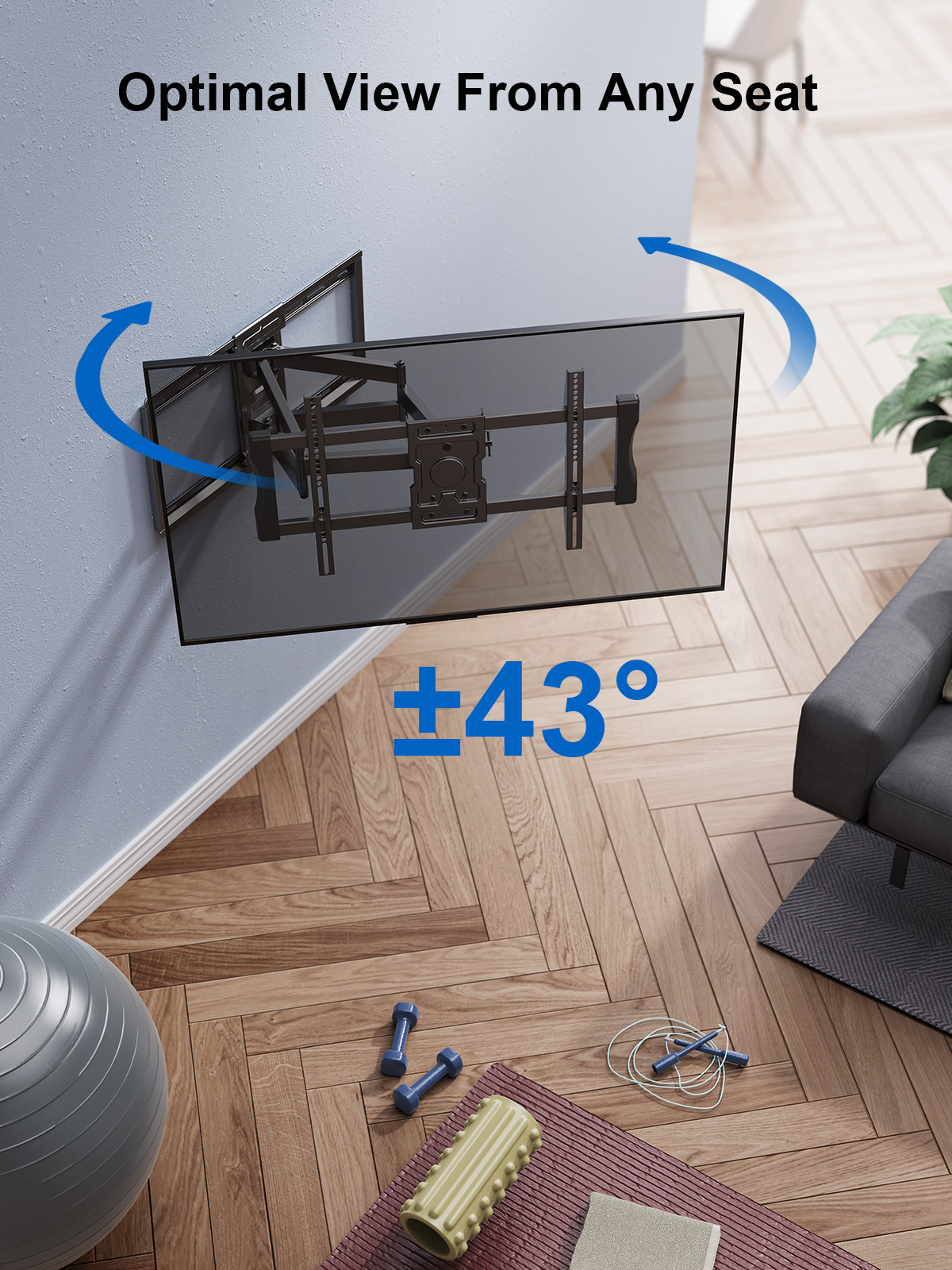

Motion Mounts allow the TV to be easily extended away from the wall, swiveled left or right and tilted, making it possible for you to get optimal viewing in any seating location

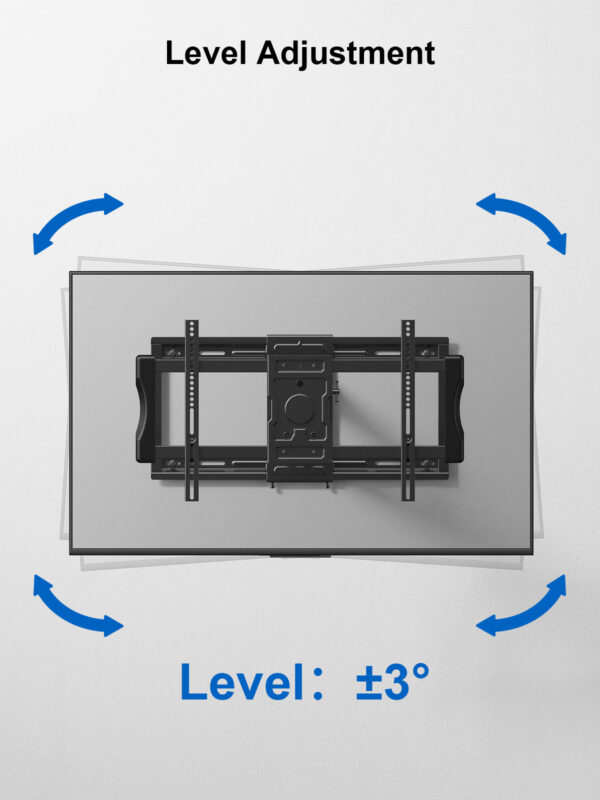

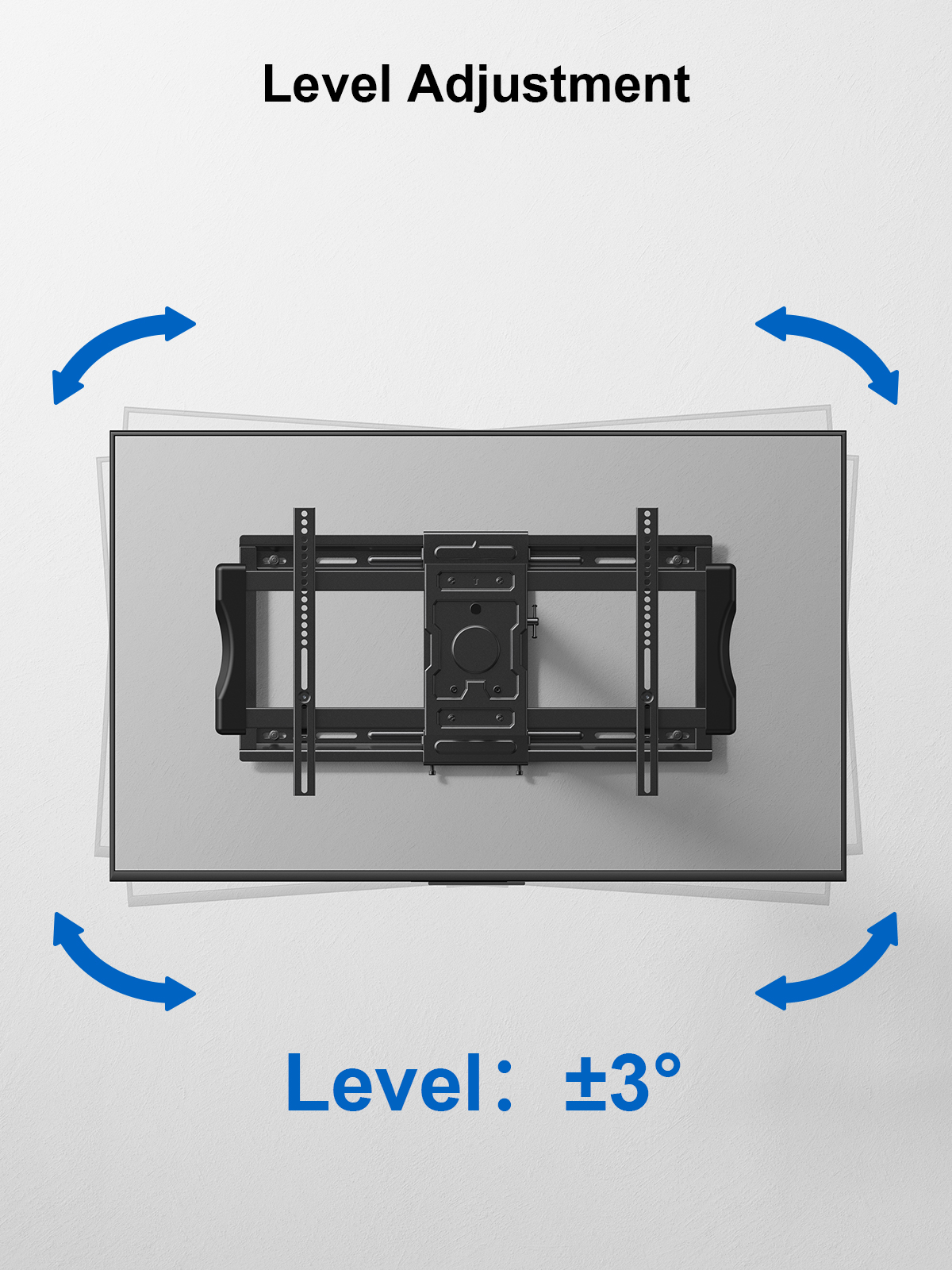

Level adjust allows the TV to be properly leveled after installation
Horizontal shift allows TV to be moved horizontally on wall plate to allow optimal placement on wall

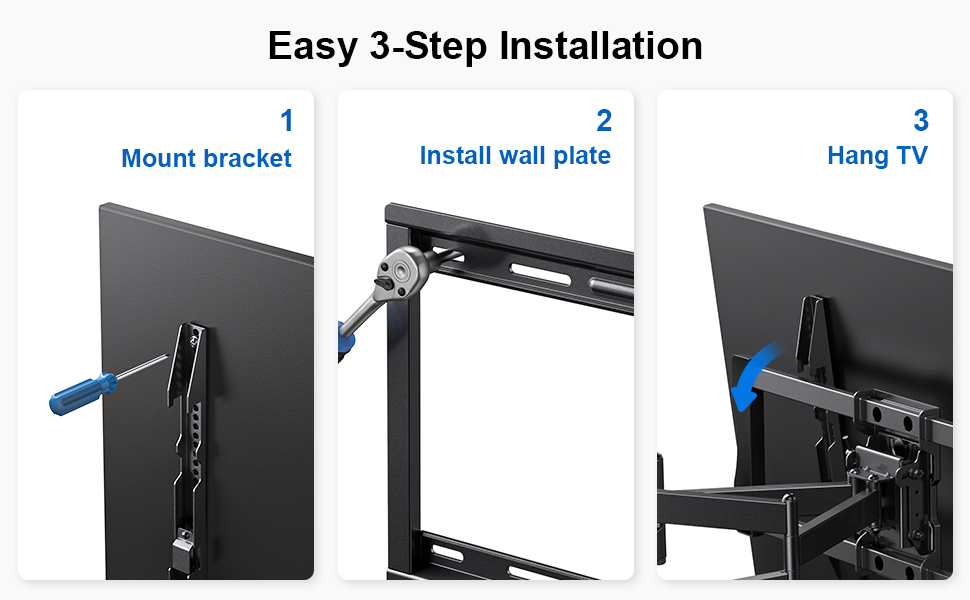

Easy three step installation. Step-by-step instruction, wall plate template, and universal hardware bag are included in the package

$279.99

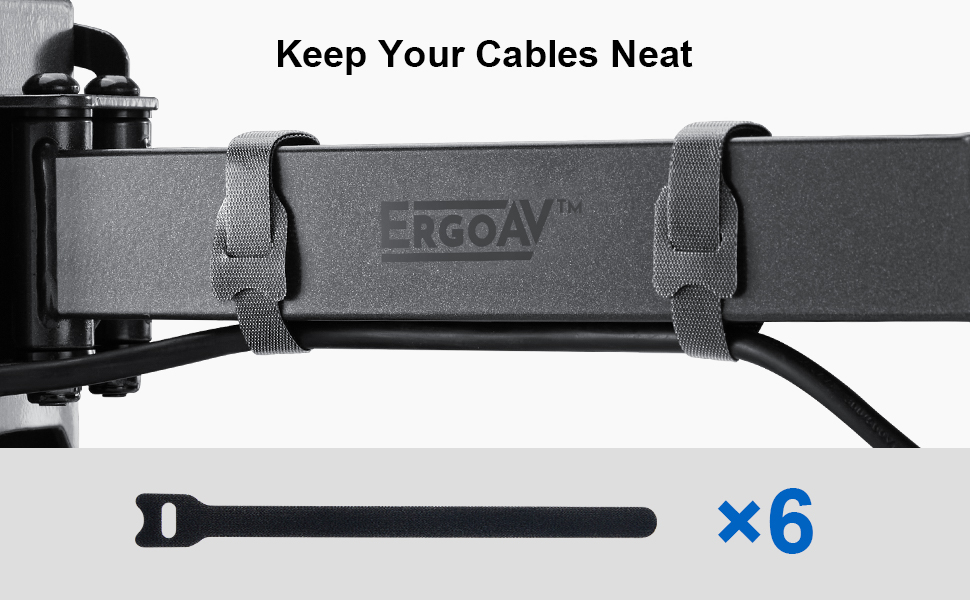

Cable Management and Access

Ease of Install

Minimal Reflections

Perfect Placement

Post Install Adjustments

Seating Locations

UL Listed Certification

Dimensions	29.8 × 16.53 × 24.25 in
Package Dimensions	29.17 x 11.50 x 3.54 in
Cable Management	Yes
Depth	4.10"

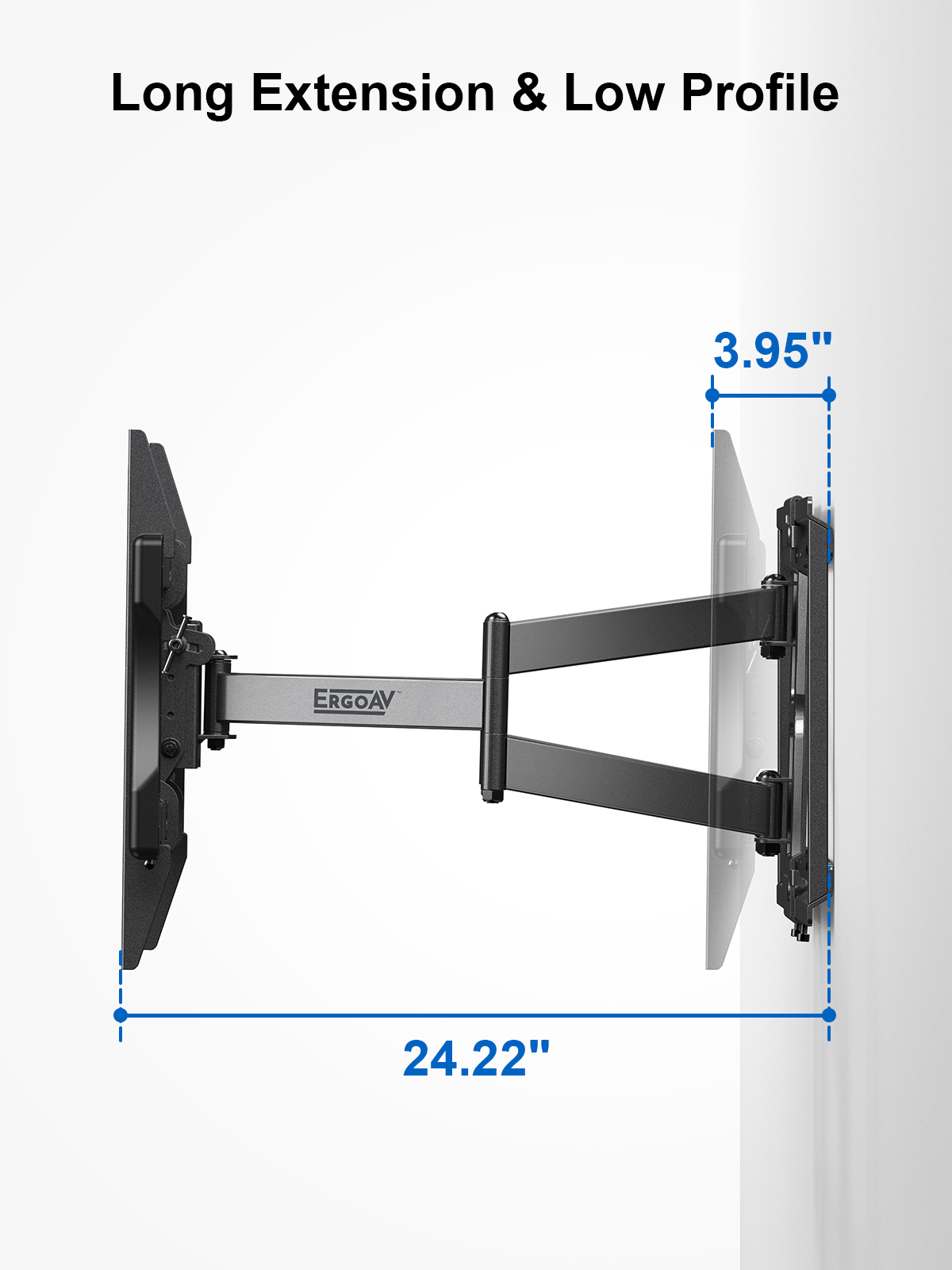

Extension	24.25"
Motion Type	Motion Mount
Stud Spacing	Up to 24"
Swivel Range	+90 °/ -90 °

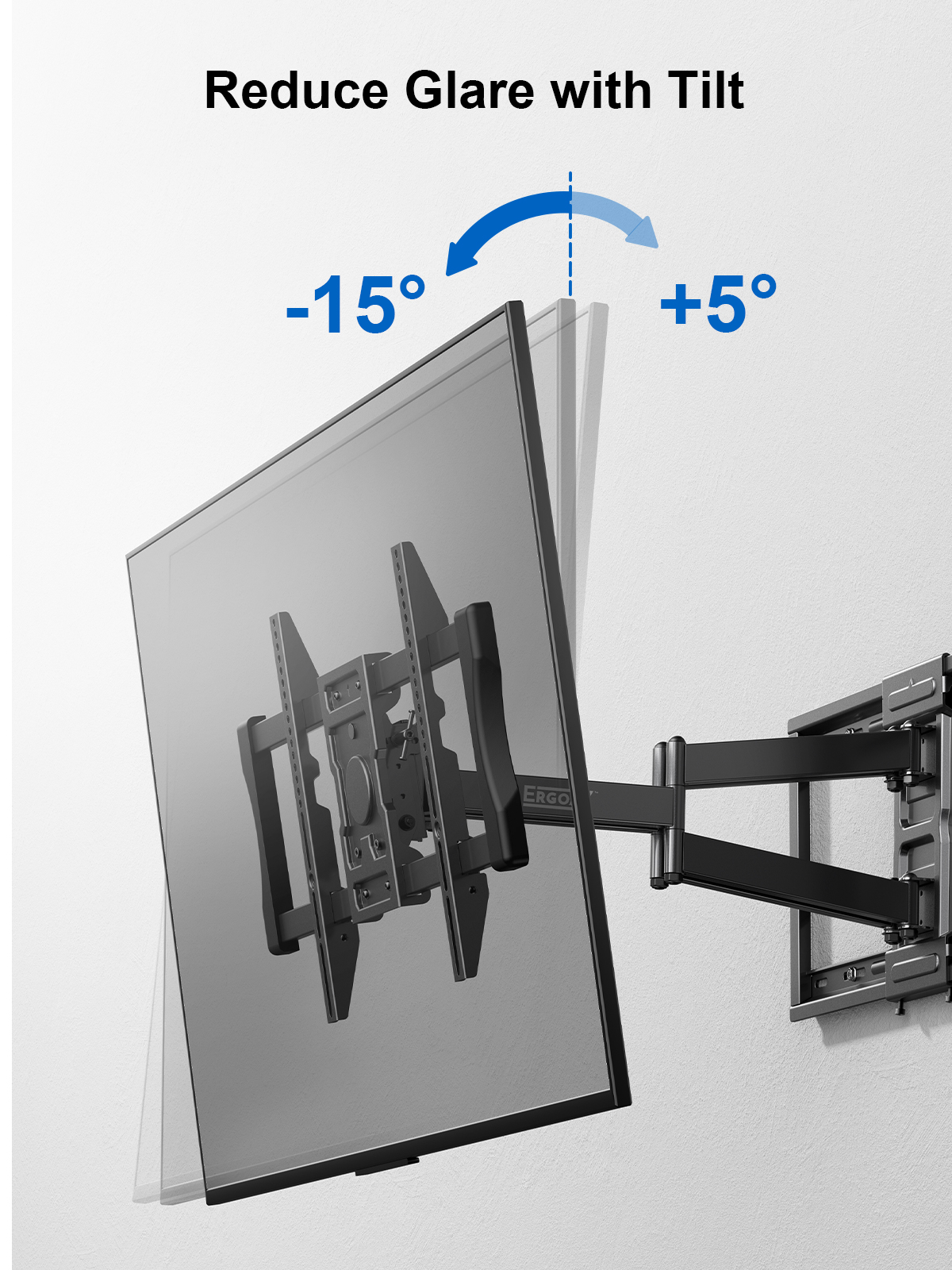

Tilt Range	+5 °/ -12 °
Level Adjust	Yes
TV Size Range	43" – 75"
UL Listed	Yes
VESA Pattern	200×100, 200×200, 200×300, 200×400, 300×100, 300×200, 300×300, 300×400, 400×100, 400×200, 400×300, 400×400, 600×100, 600×200, 600×300, 600×400
Weight Capacity	132 lbs.
UPC	810082200072

ERMML1-01B Technical Drawing

ERMML1-01B Installation Manual

ERMML1-01B Sell Sheet
