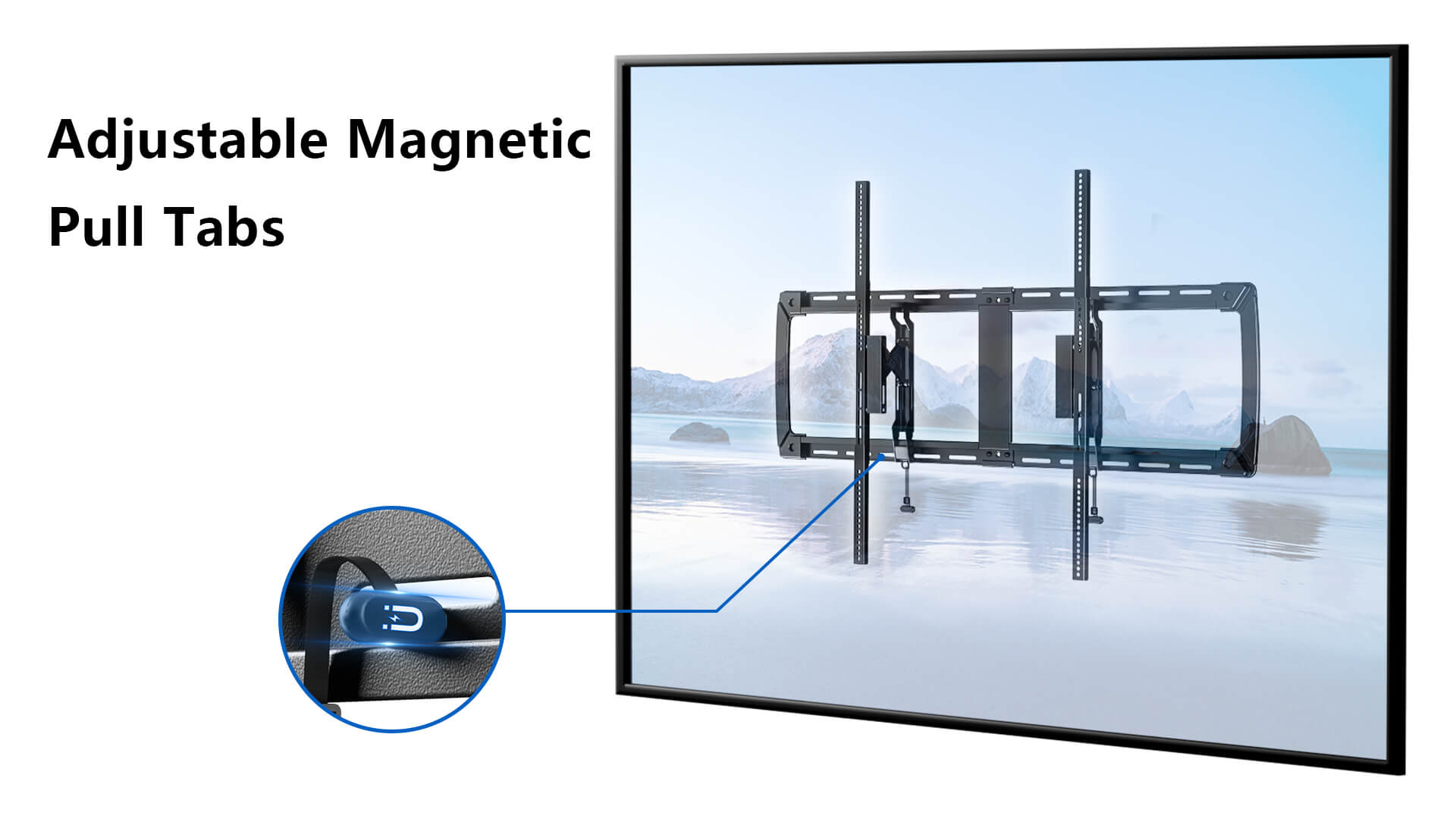

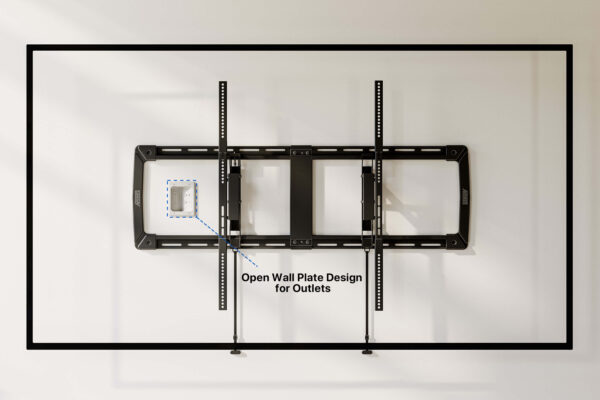

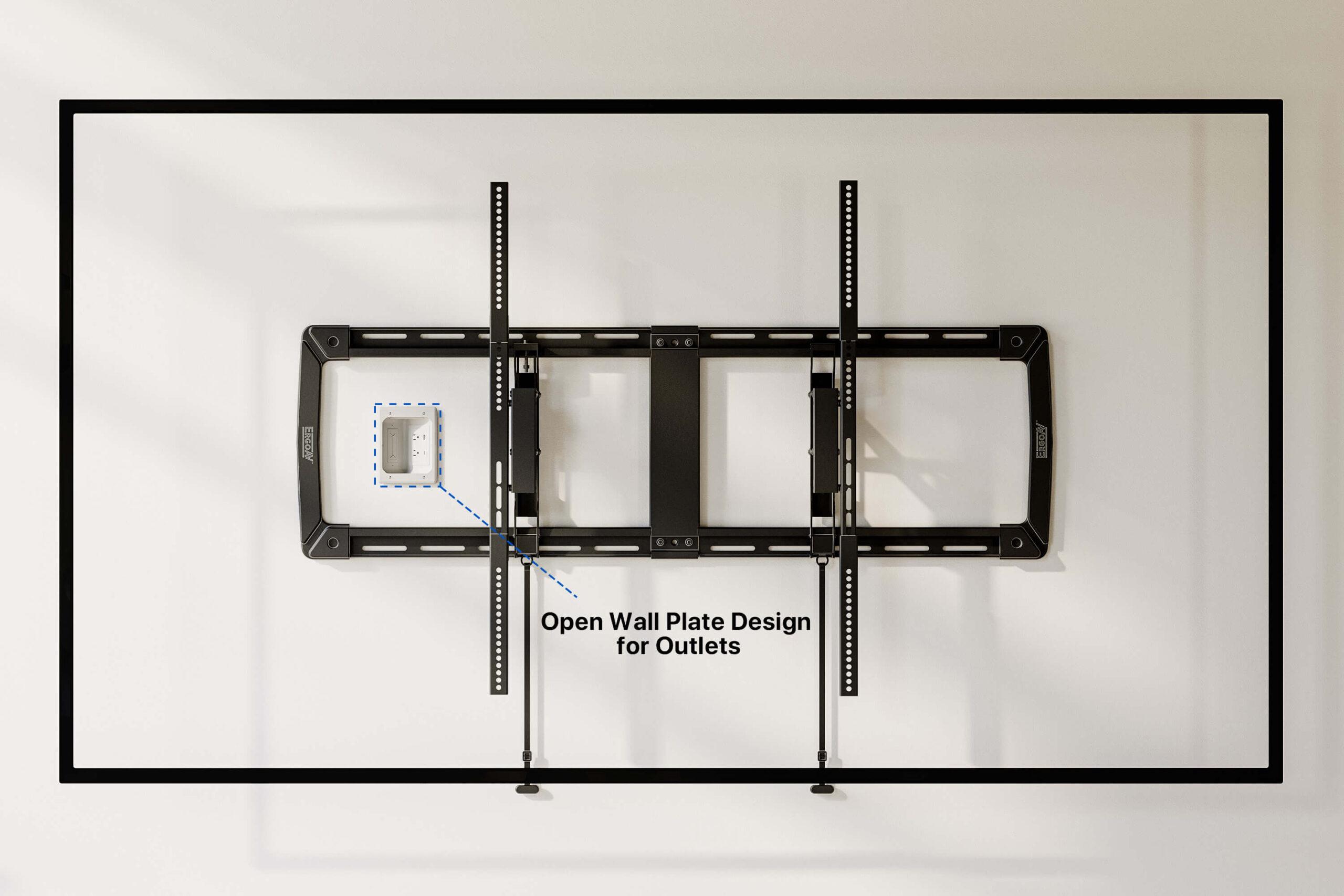

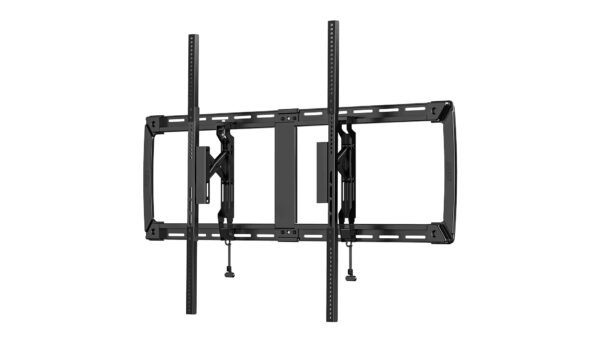

The ERMLX1-01B motion mount fits most TVs 75″–115″ up to 225 lbs weight capacity. This mount enables the TV to be extended from the wall and swiveled left or right for optimal viewing from any seat. Level adjustment allows the TV to be properly leveled after installation. Horizontal shift allows the TV to be moved horizontally on the wall plate for optimal placement. The open wall plate design allows easy access to outlets. The unique lock mechanism allows the TV to be securely attached to the wall plate and easily removed when needed.

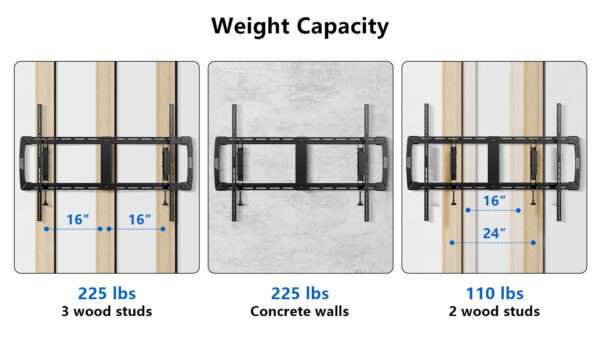

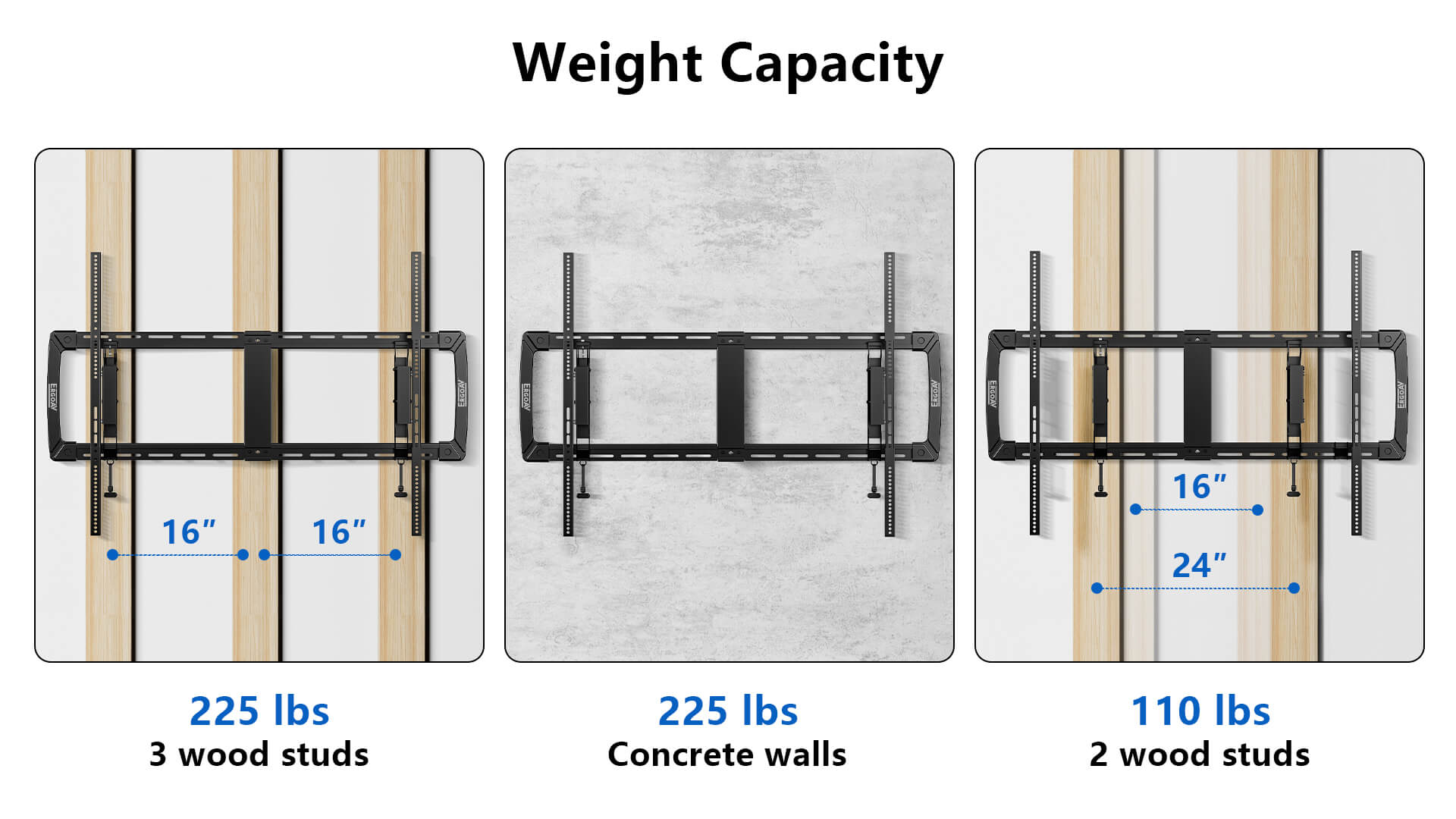

With its 3-stud design, this TV mount supports up to 225 lbs when installed on 3 wood studs.
Fits most TVs 75″-115″ with VESA patterns from 100 x 100mm to 1150 x 850mm.

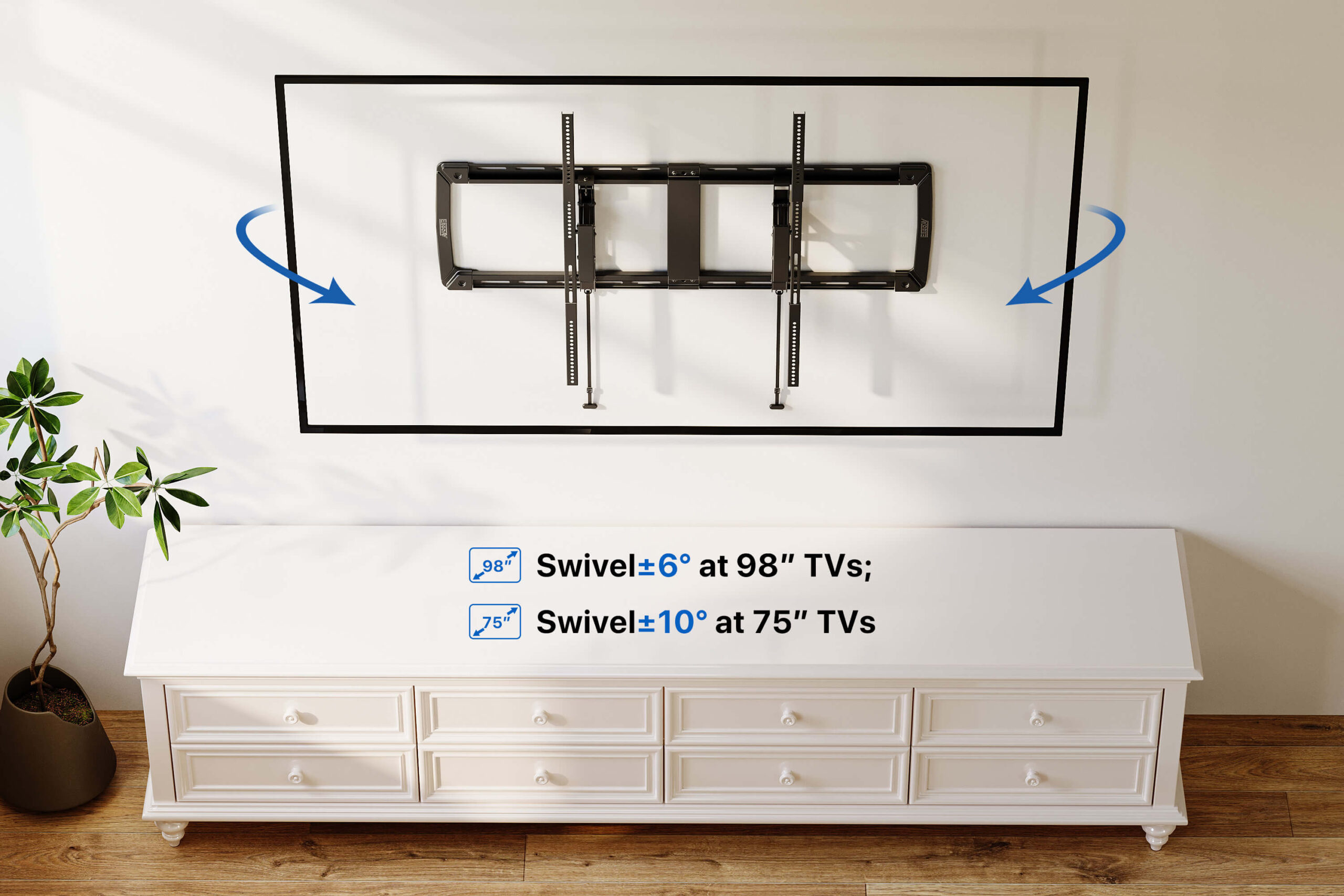

Motion Mount allows the TV to be easily extended 1.8″-5.2″ from the wall, swiveled ±6°, making it possible for you to get optimal viewing in any seating location.

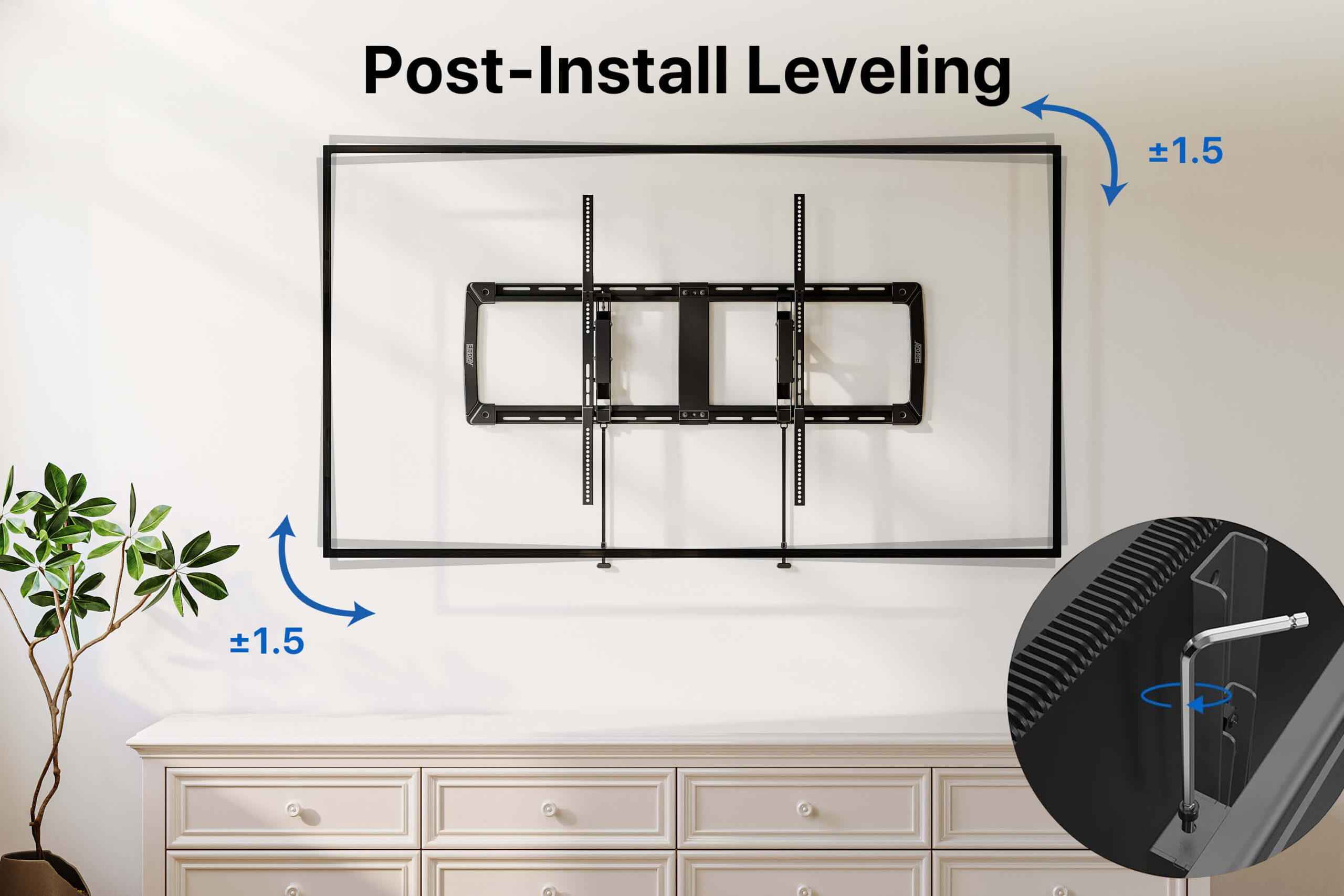

Level adjustment of ±1.5° allows the TV to be properly leveled after installation.
Horizontal shift allows TV to be moved horizontally on wall plate to allow optimal placement on wall.
$199.99
| TV Size Range | 75"- 115" |
|---|---|
| Weight Capacity | 225 lbs |
| VESA Pattern Min | 100 x 100 |
| VESA Pattern Max | 1150 x 850 |
| Product Dimensions (in) | 52.1 x 34.6 x 1.8 |

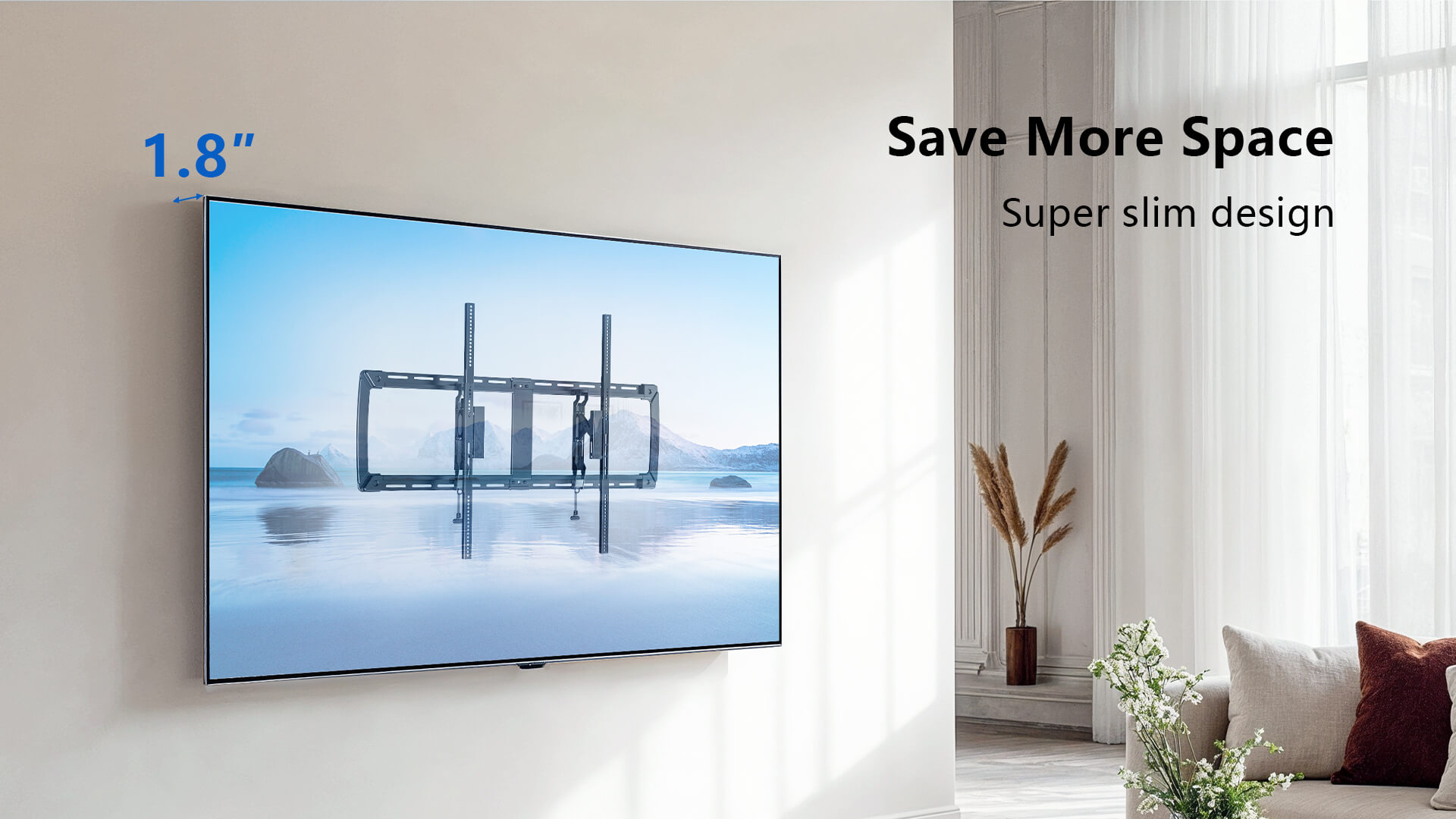

| Depth | 1.8 |
| Extension | 1.8” to 5.2” |
| Swivel Range | +/- 10° |
| Level Adjust | +/- 1.5° |
| Stud Spacing | 16'', 24'' or 16"-16" |
| Packaging Dimensions | 30" x 17.5" x 3.2" |
| Color | Black |
| UPC Code | 810082201697 |
