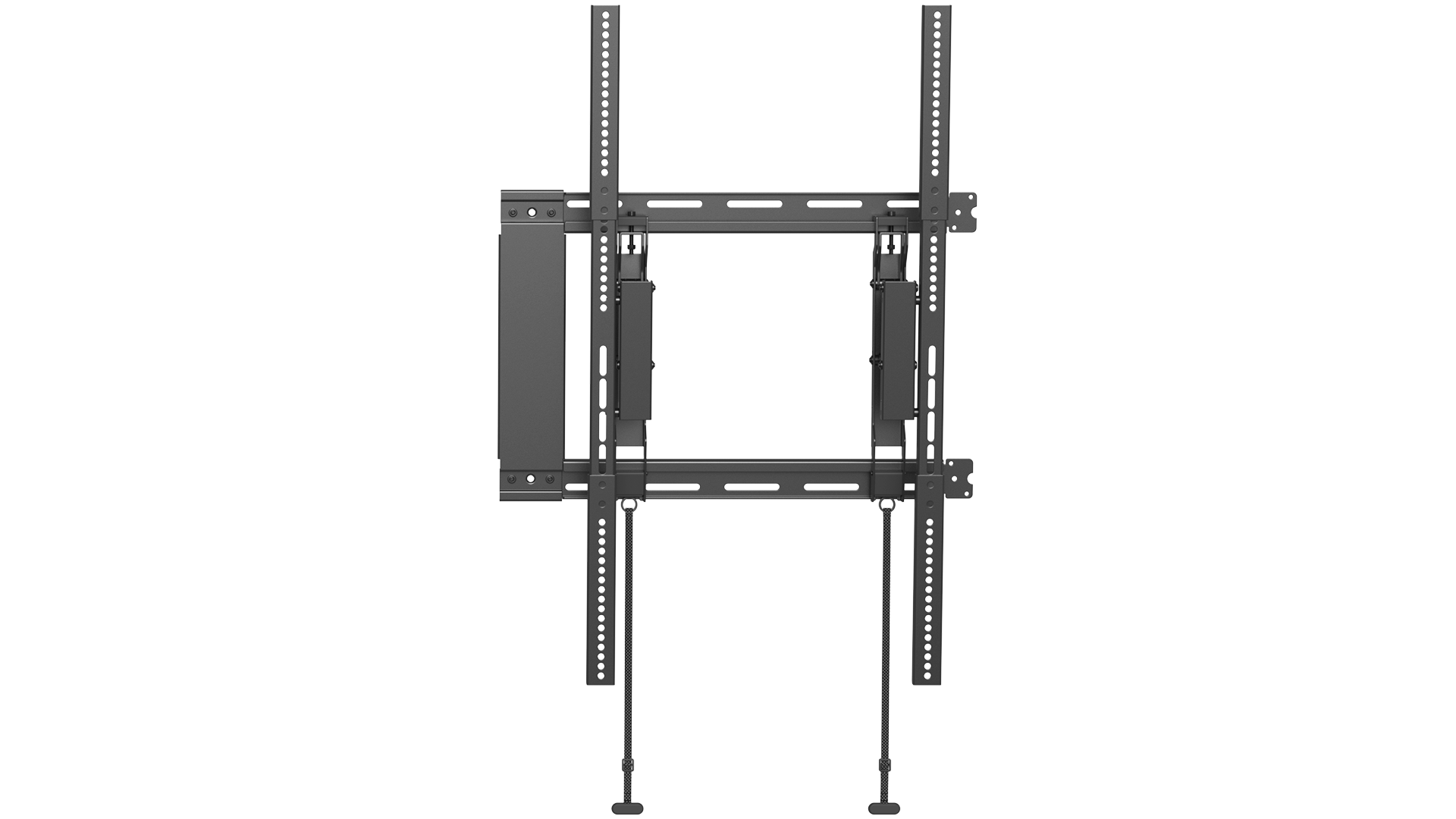

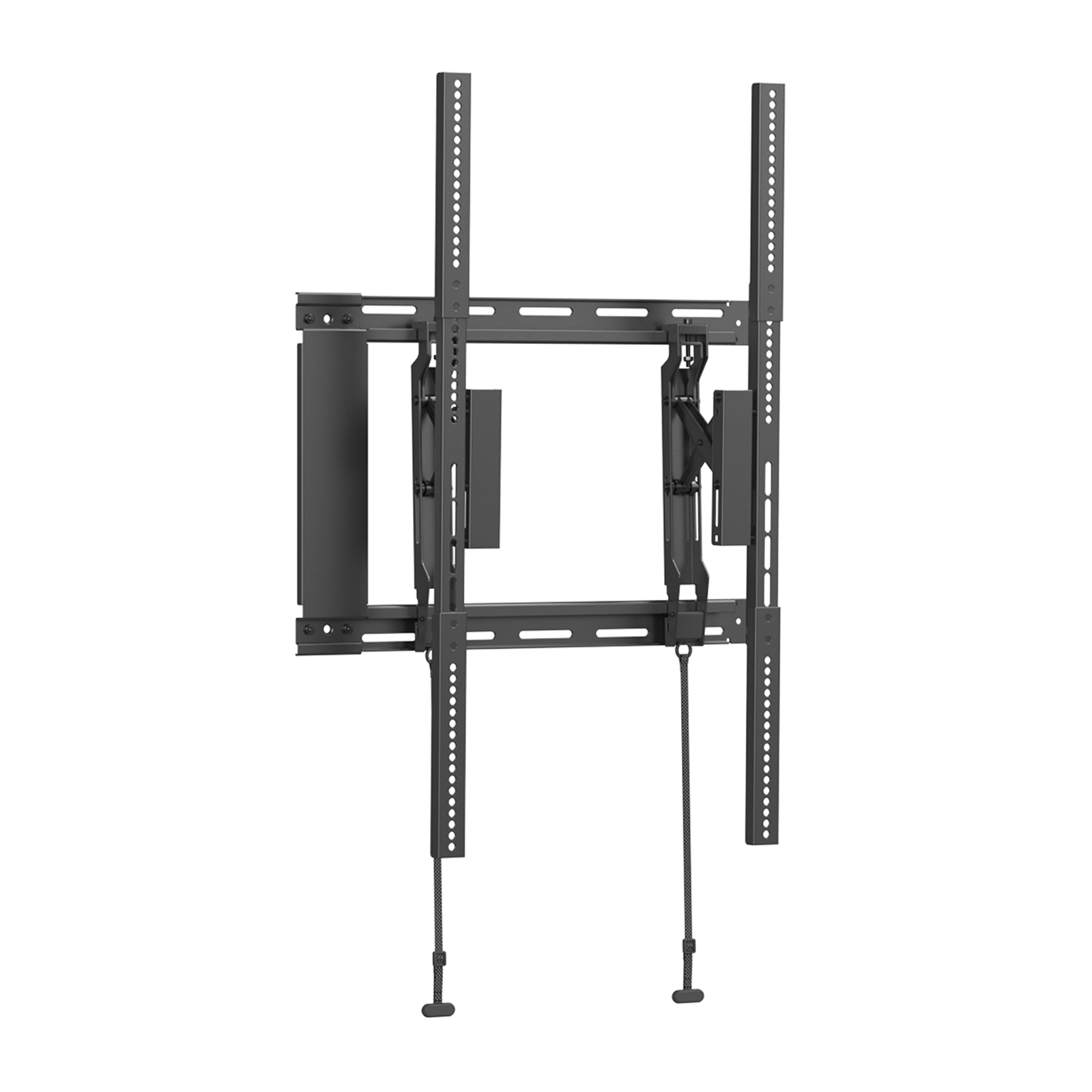

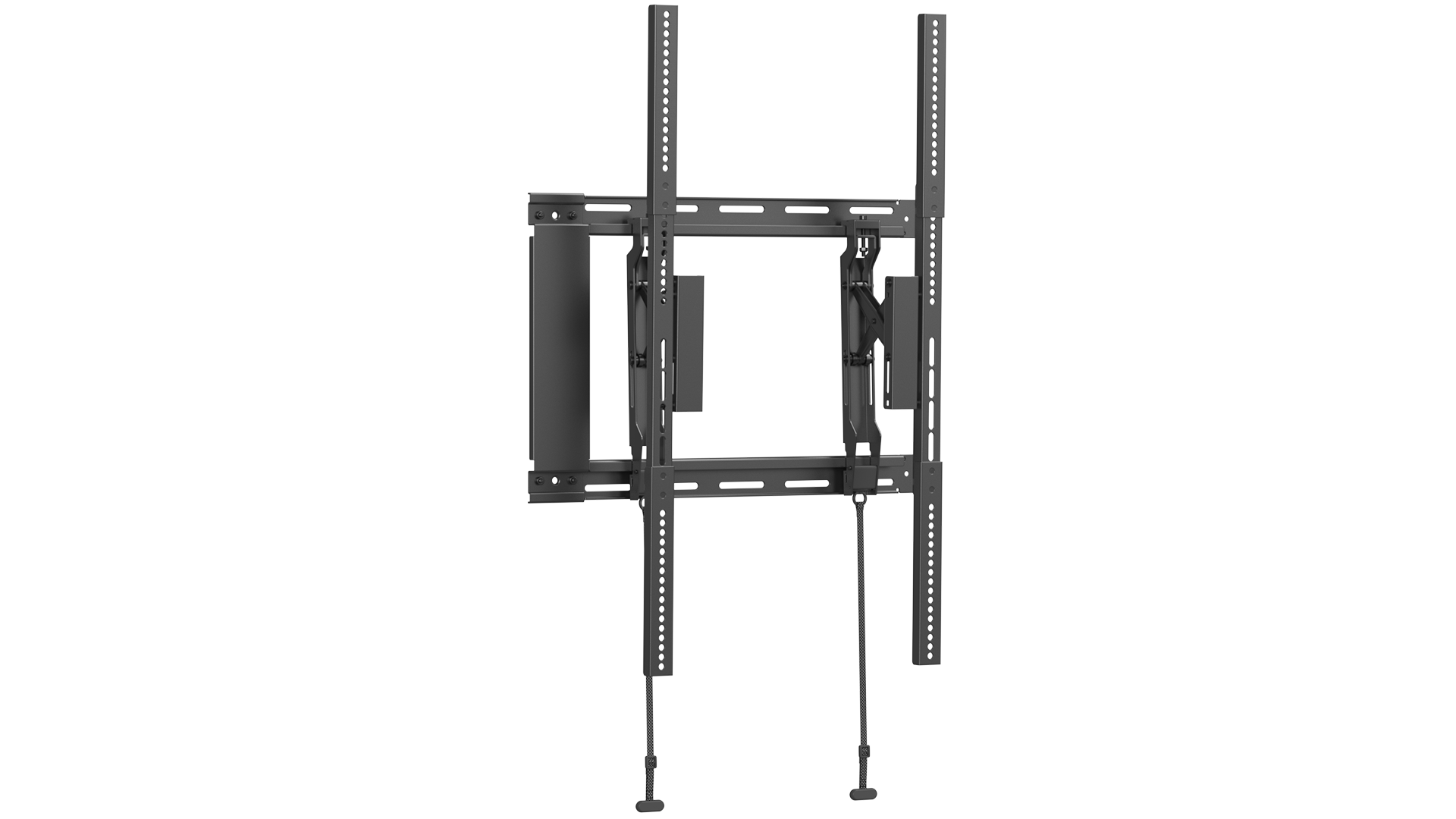

ERMLX1 Extension Kit

ERMLX1-EXTKIT

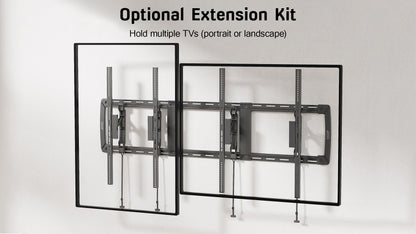

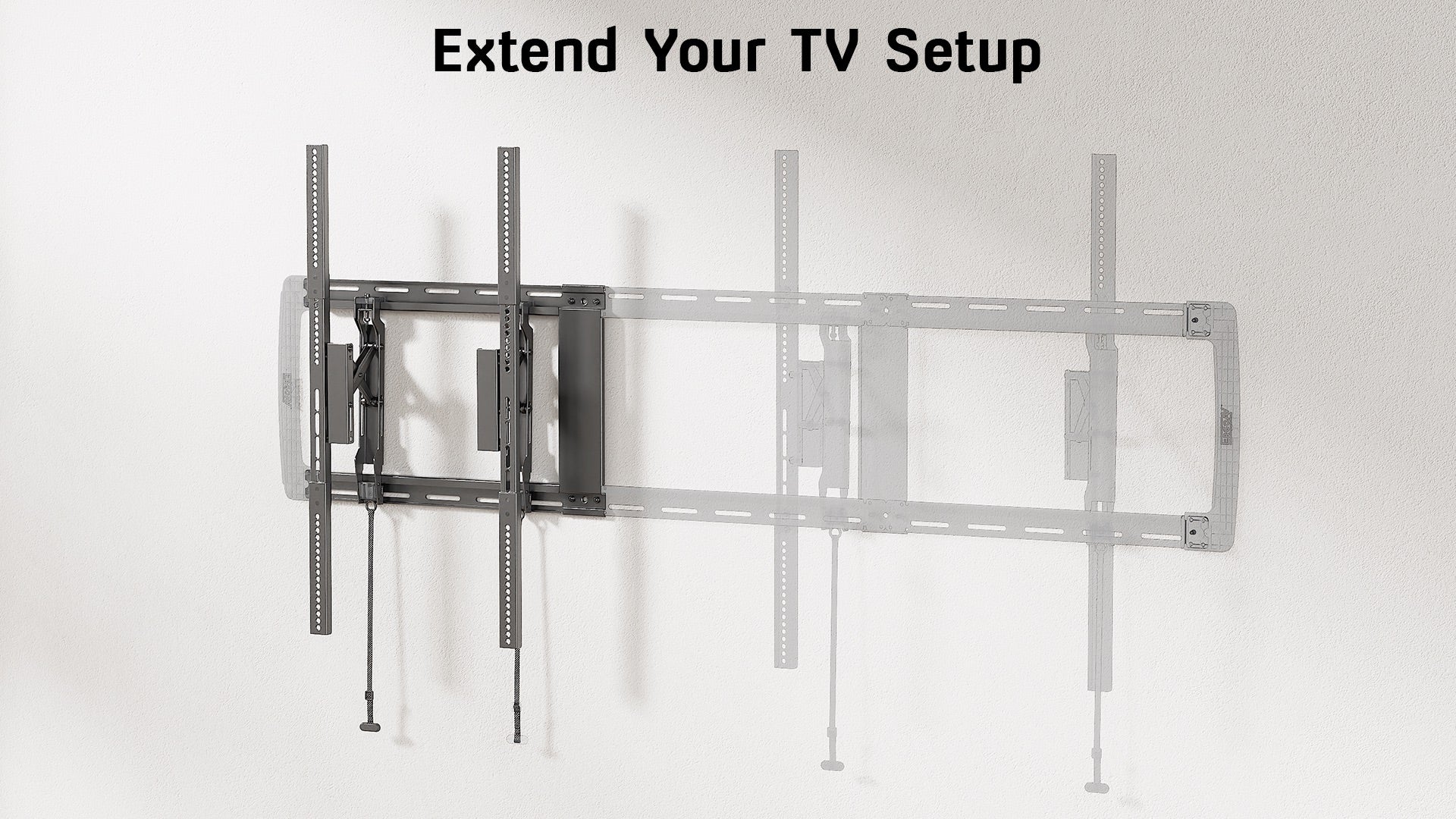

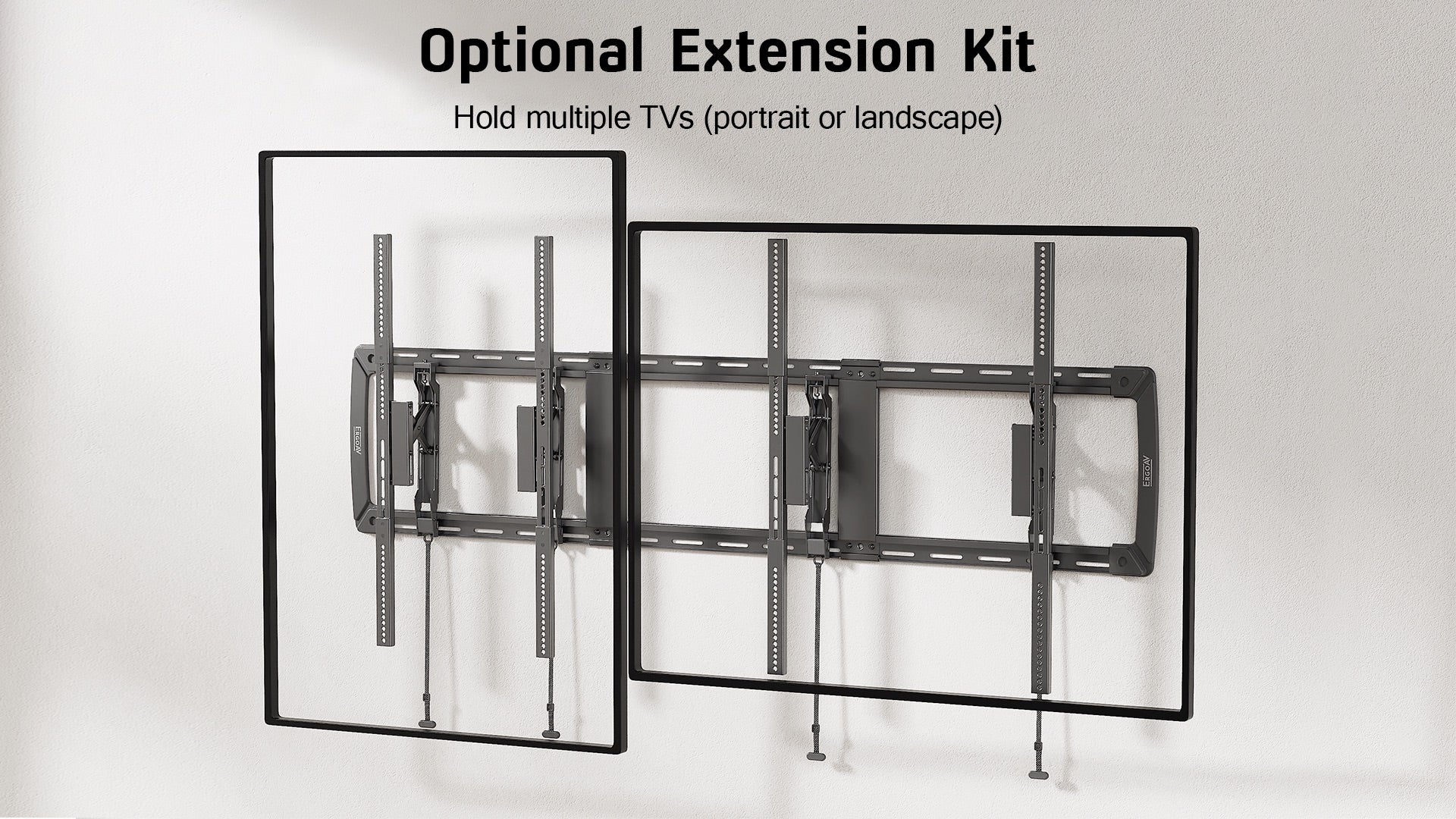

Expand your display capabilities with the ErgoAV Extension Kit—designed to work seamlessly with the ERMLX1-01B Extend and Fixed Mount. This modular add-on allows you to daisy chain additional wall plates to create a continuous mounting system for multiple TVs. Whether you’re building a video wall, digital signage setup, or commercial display array, this extension kit gives you the flexibility to mount TVs in either landscape or portrait orientation.
  • Combined with ERMLX1-01B, it provides multiple TV and monitor mounting solutions on ONE continuous wall plate, extending the VESA compatibility to your needs or multiple versions of it.

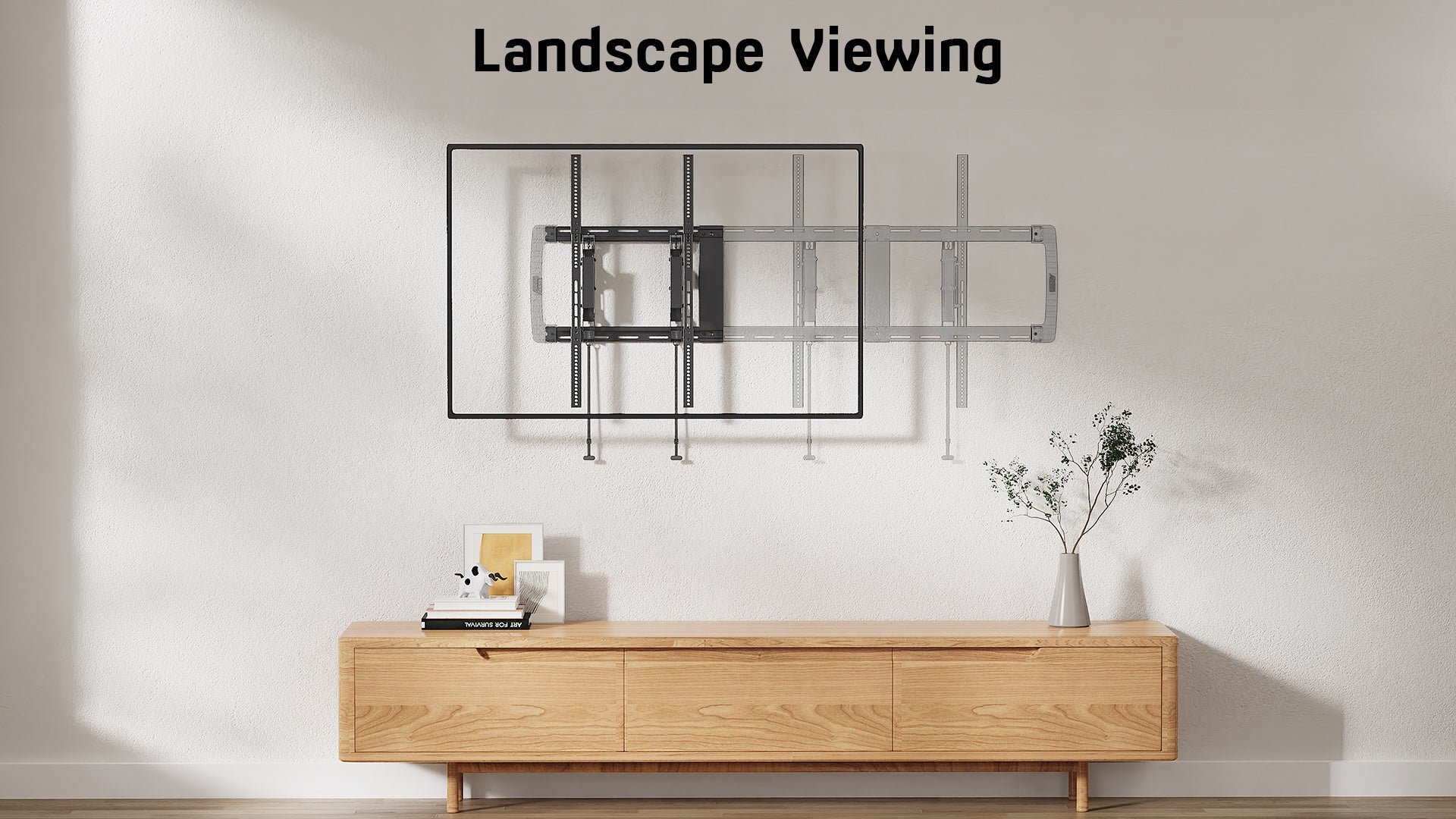

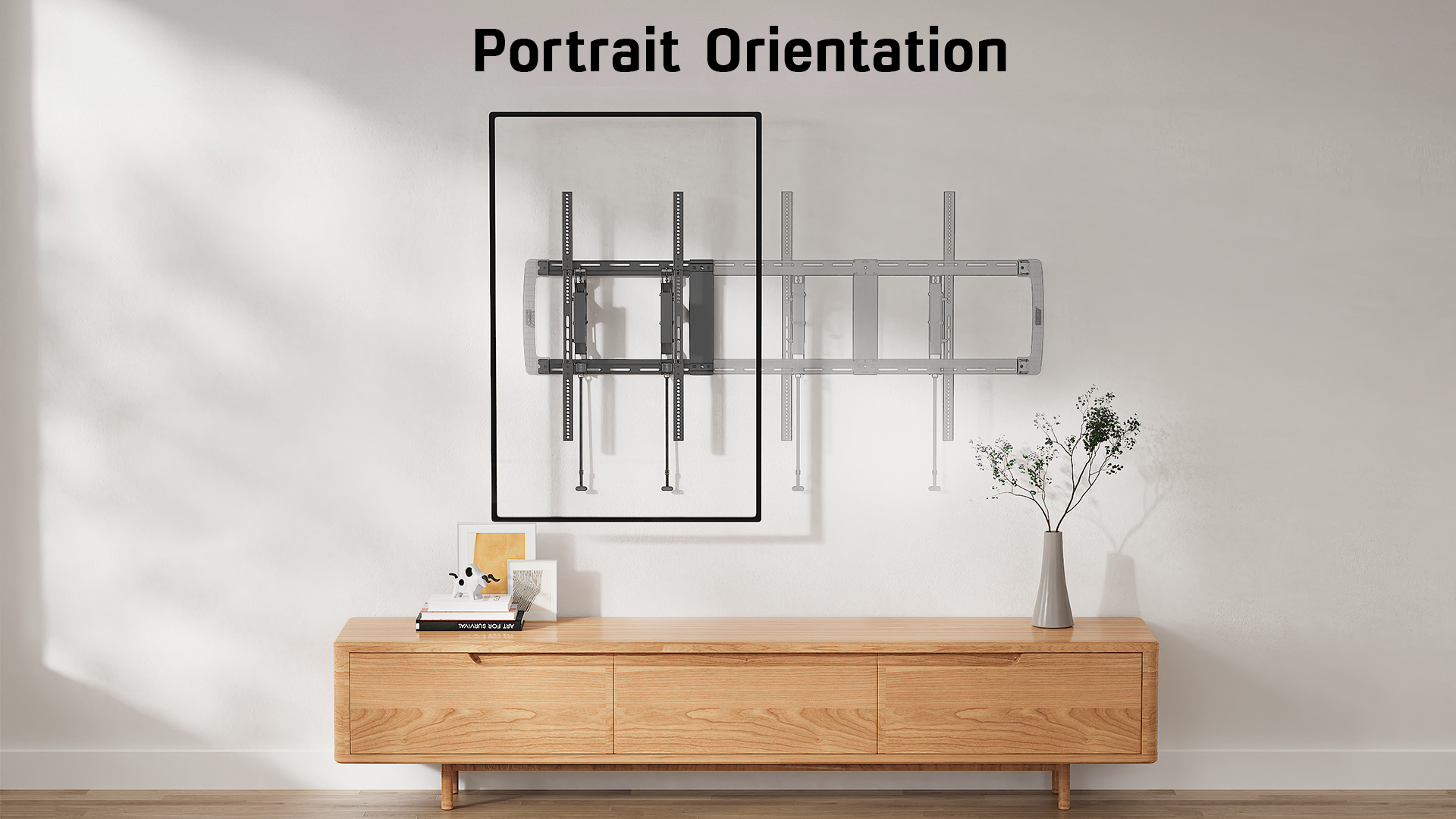

  • Designed for the ERMLX1-01B extend and fixed mount, this extension kit allows mounting an additional TV in portrait or landscape orientation, perfect for TV walls, menu boards, and more.
  • This extension kit fits VESA patterns from 100 x 100mm to 550 x 850mm with a weight capacity of 132lbs.
  • It allows the TV to be easily extended 1.8″-5.2″ from the wall and swiveled ±10° for alignment with the sets mounted on the ERMLX1-01B.
  • Level adjustment of ±2° allows the TV to be properly leveled after installation.
  • The kit includes the extension wall plate, connection plate, one set of TV brackets, and mounting hardware.
  • Horizontal shift allows TV to be moved horizontally on wall plate to allow optimal placement on wall.
Regular price $179.99
$179.99
Sale Sold out
View full details
Extension Kit
Easy to Install
Seating Locations
Post-Install Adjustments
Perfect Placement
Specifications
Downloads
Mount Type Extend + Tilt
Profile 1.8"
Weight Capacity 132 lbs
Stud Spacing 16" & 24"(EXTENDED)
Extension 5.2"
TV size range 32" – 115"(EXTENDED)
UPC 810082201840
Wall Supported Wood Stud, Concrete & Concrete Block
Product Dimensions 23.0″ x 34.6″ x 1.8″
Swivel Range ±10°
Color Black
VESA Pattern 100 x 100 – 550 x 850 or Needed Width
Level Adjustment ±2°
Tilt Range /
