| Dimensions | 18.32 × 16.73 × 2.6 in |
|---|---|
| Package Dimensions | 19.3 x 6.2 x 2.8 in |
| Cable Management | No |

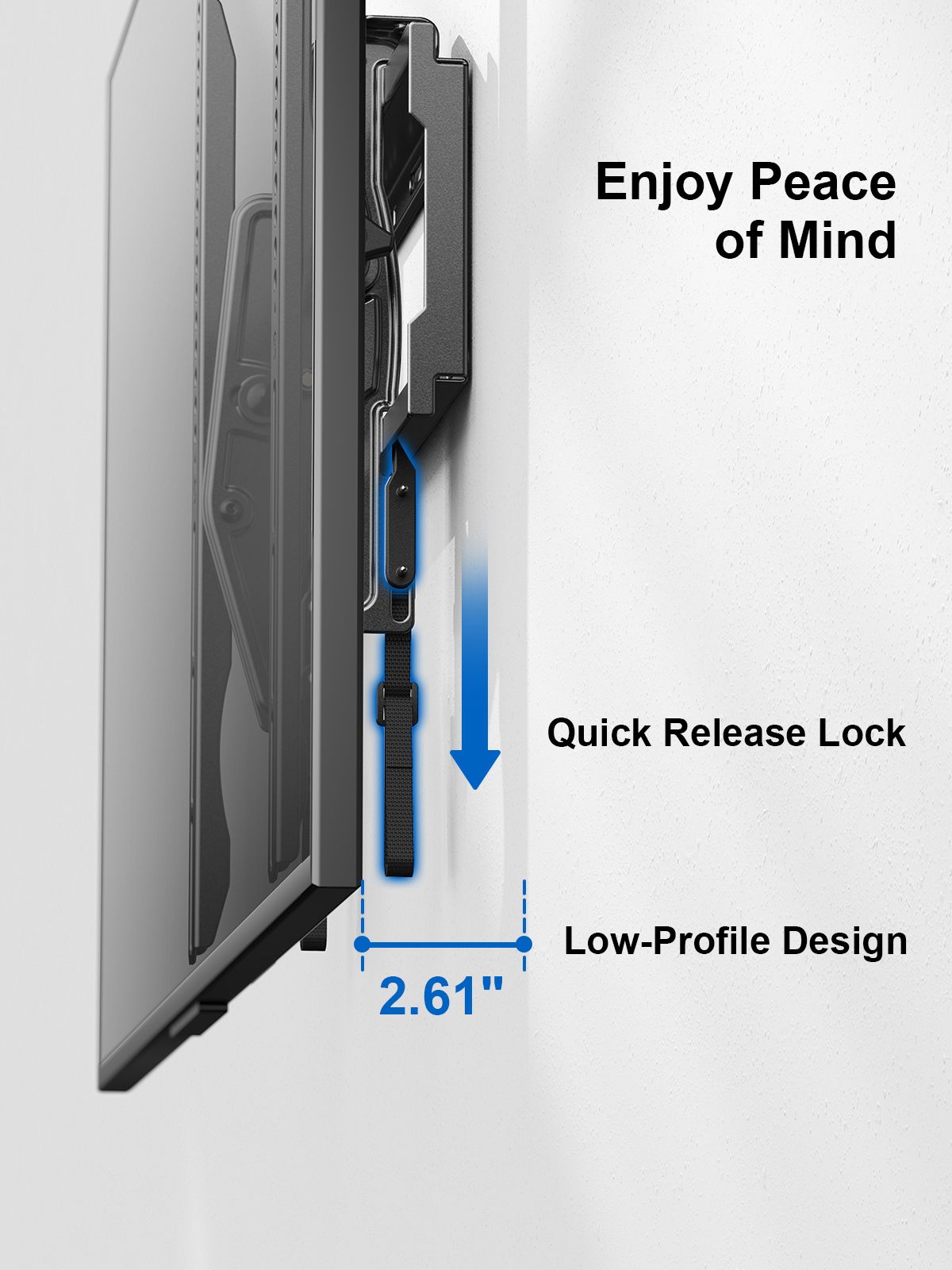

| Depth | 2.61" |
| Extension | n/a |
| Motion Type | Tilting |

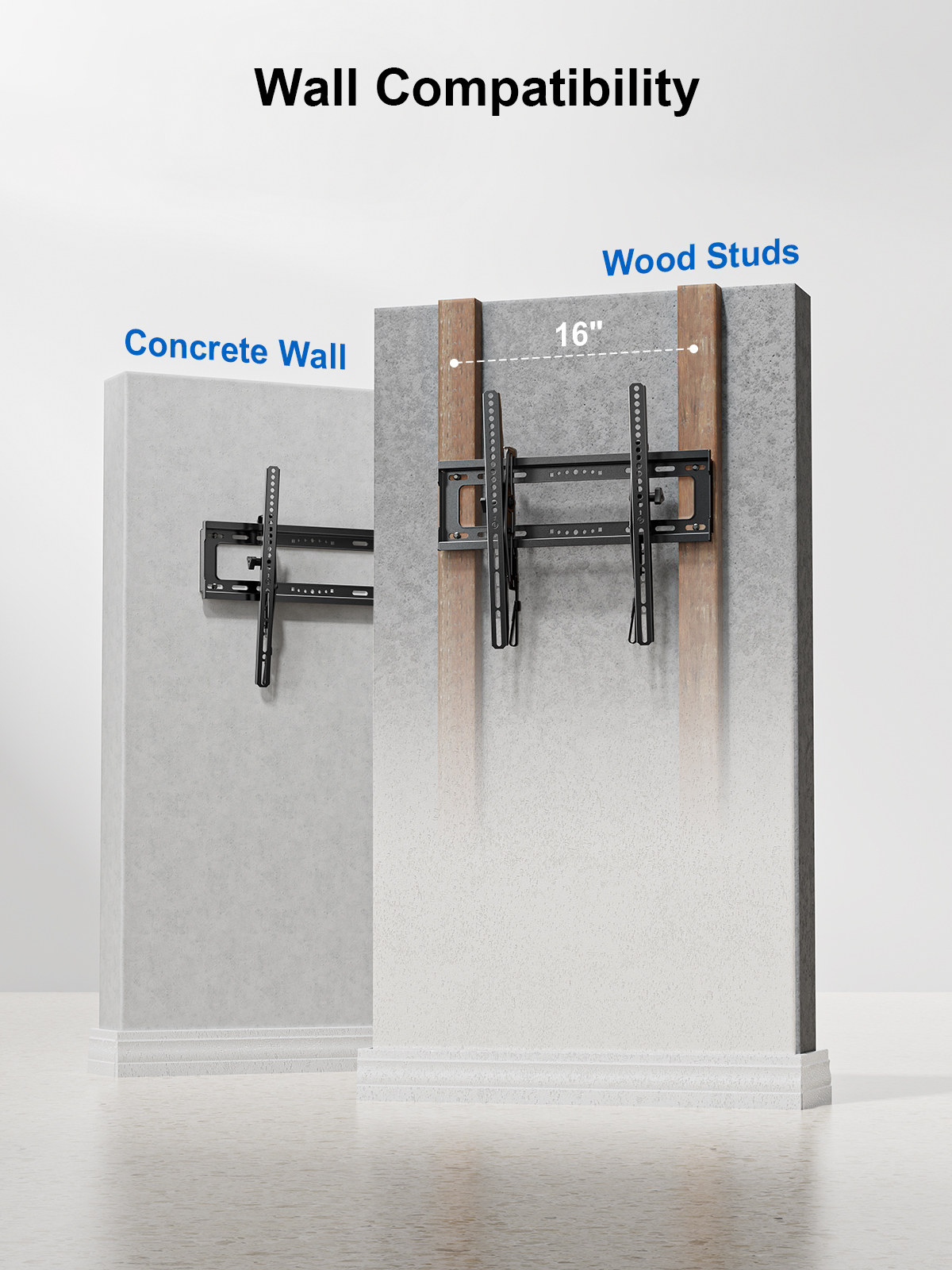

| Stud Spacing | Up to 16" |
| Swivel Range | n/a |

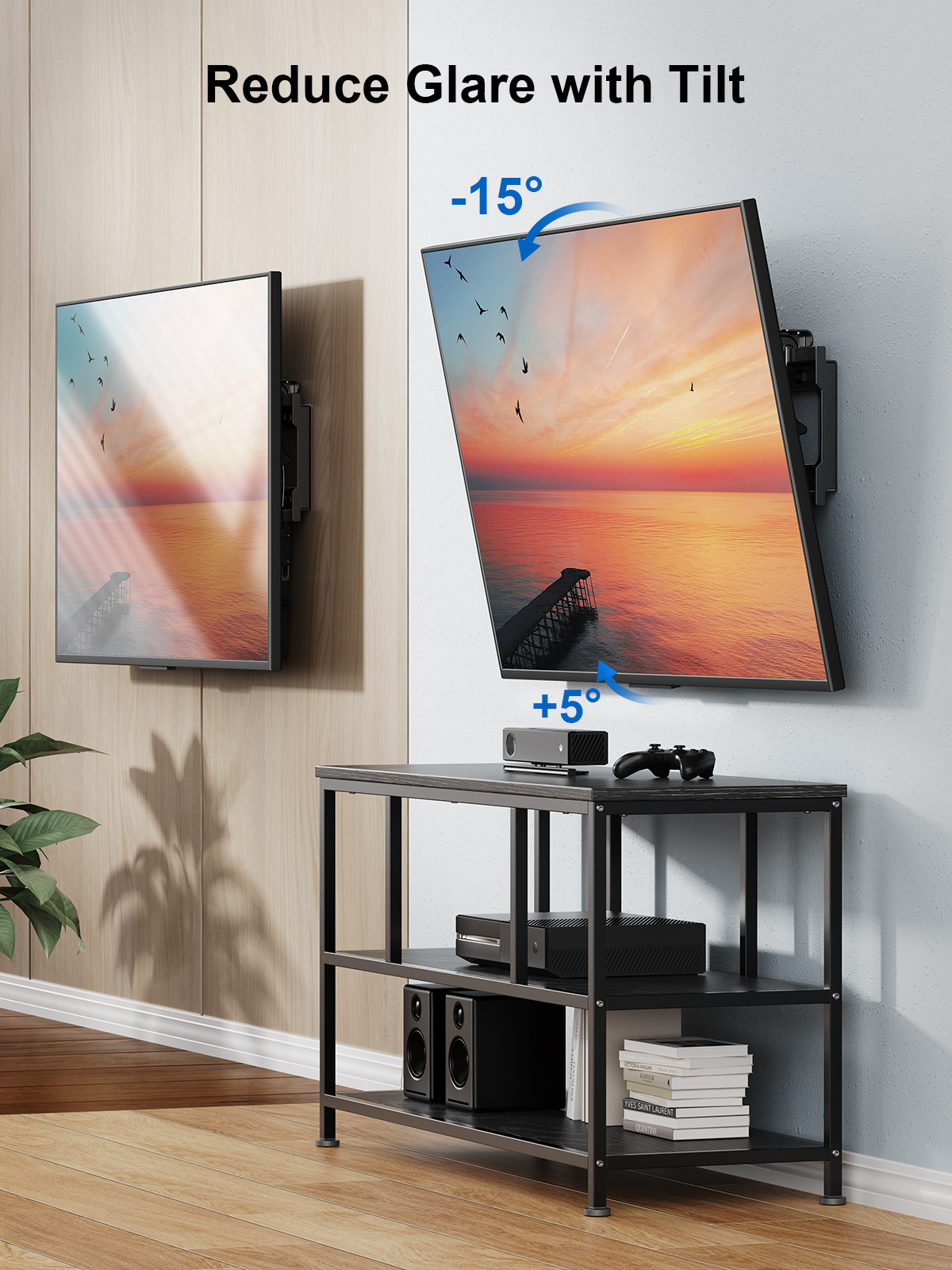

| Tilt Range | +5 °/ -15 ° |
| TV Size Range | 40" – 55" |
| UL Listed | Yes |

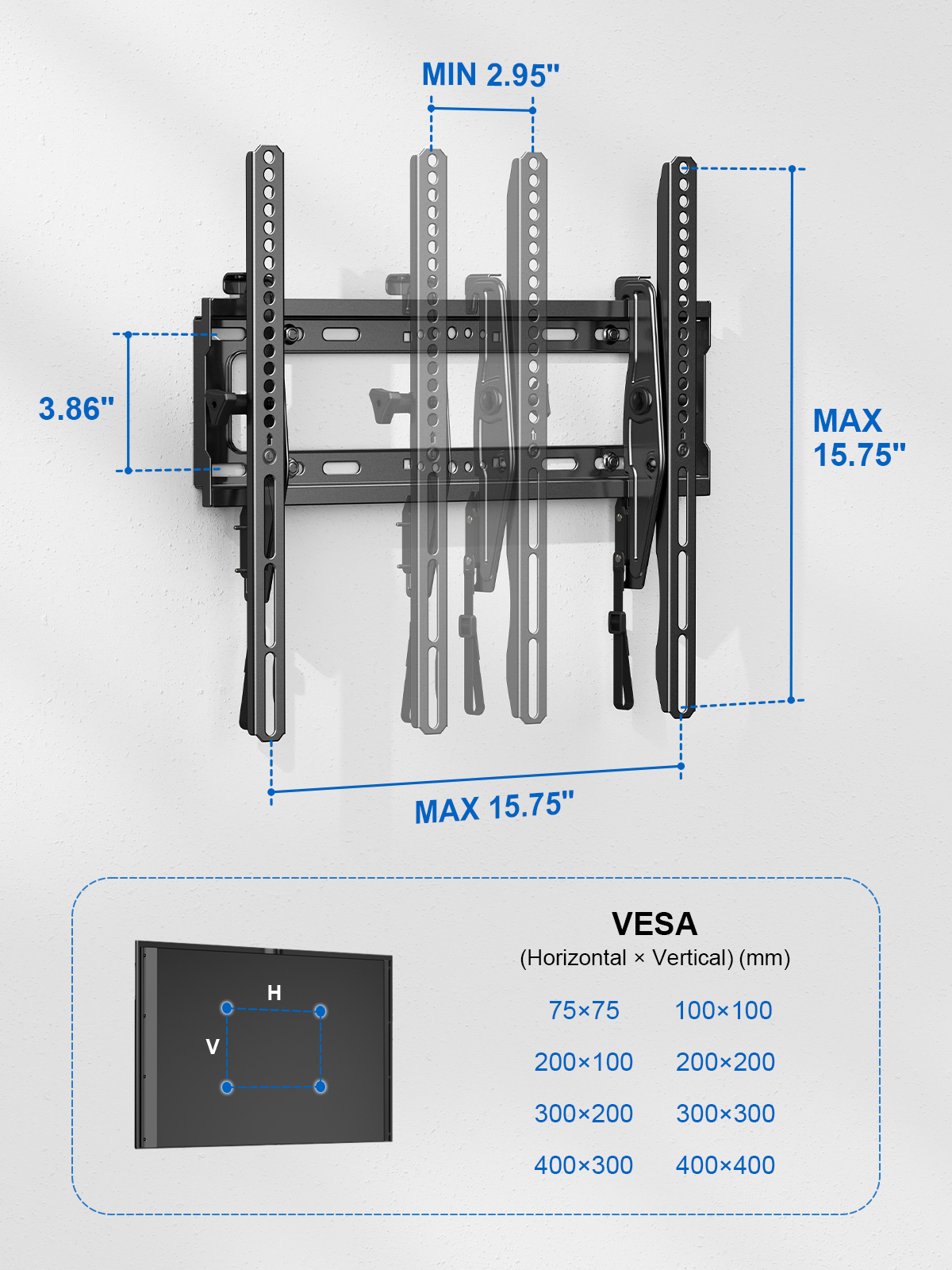

| VESA Pattern | 100×100, 100×200, 100×300, 100×400, 200×100, 200×200, 200×300, 200×400, 300×100, 300×200, 300×300, 300×400, 400×100, 400×200, 400×300, 400×400 |
| Weight Capacity | 115 lbs. |

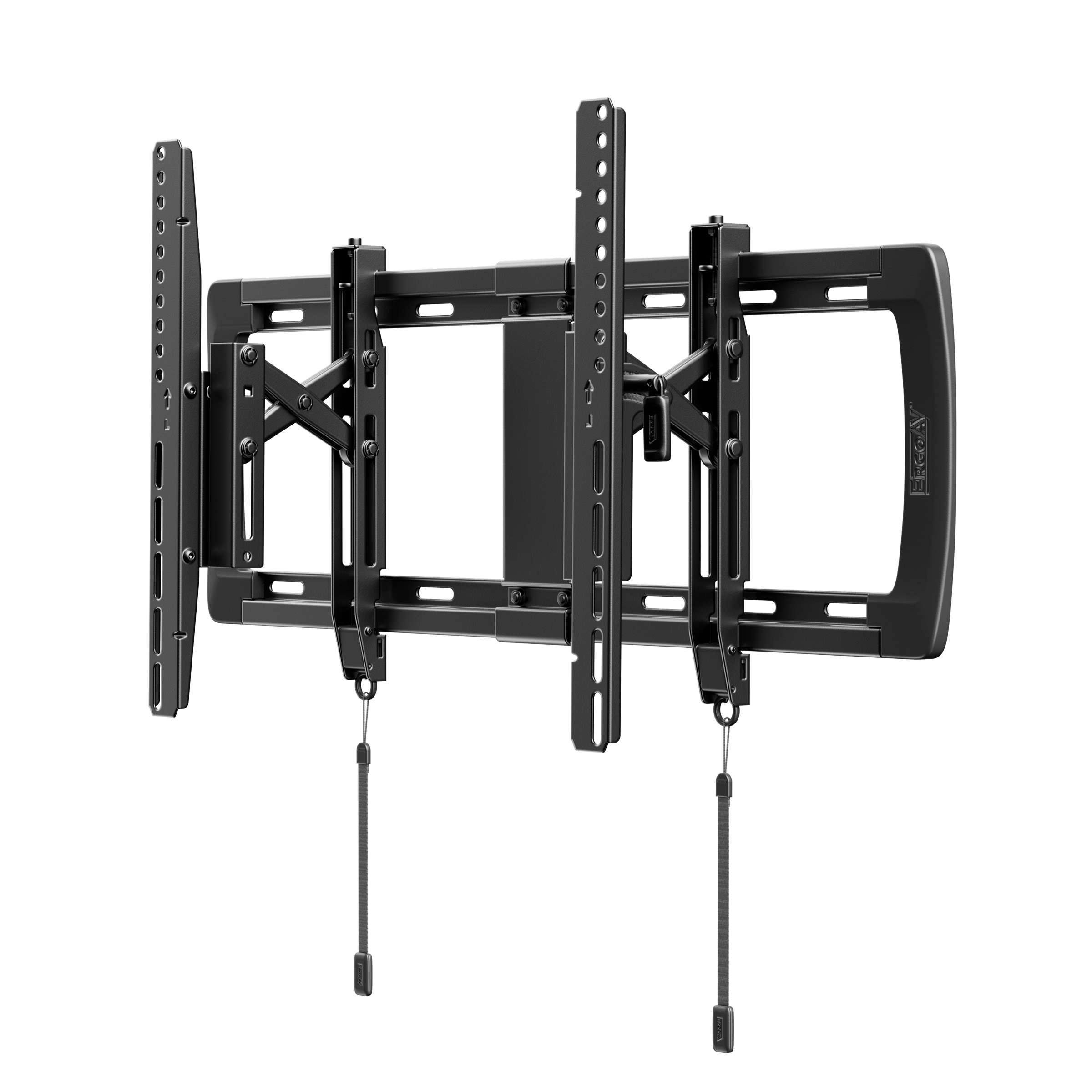

ERMTX1-01B
Tilt Mount for TVS 49″ to 90″
Philip Volk –
This is a very easy mount to install. At first I was concerned about it’s light weight however the structural design is excellent. The release mechanism is definitely one of the best out there, simple, effective, easy to operate. A more than ample supply of hardware came with the mount and enough tilt adjustments for most applications.
Two points on the install: in order to get the TV centered on the wall I ended up using 2 of the 4 lag bolts to attach it to a stud which left me 2 short for using the supplied drywall inserts. It would be nice to a total of 6 lags. The other item is getting the tv level. The wall mount was level but when I attached the tv it wasn’t. Not sure if that was an installer error or the mount is not square. In any case there is a small amount of adjustment available which corrected the issued.
For the price this is an excellent mount.
