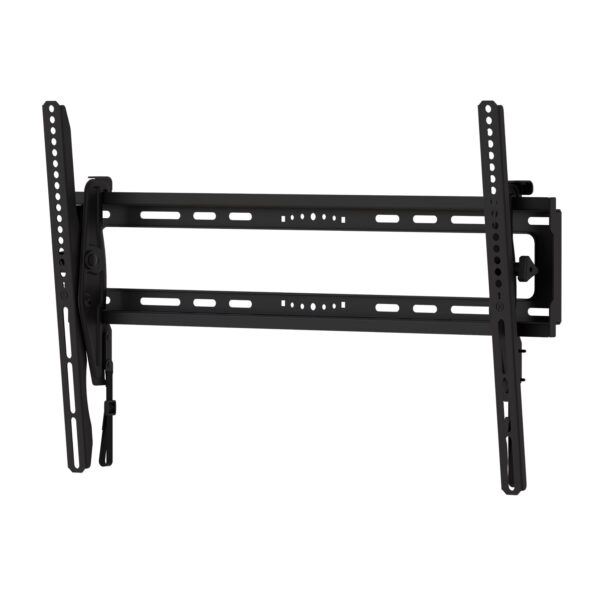

Tilt Mount for TVs 43″ to 75″

ERMTL1-01B

The ERMTL1-01B tilting mount fits most TVs 43″ to 75″ and up to 115 lbs. Tilting functionality helps with reducing reflections and enhances the viewing experience. Unique latching mechanism allows TV to be attached securely and removed from wall plate quickly and easily. Horizontal shift allows TV to be moved horizontally on wall plate to allow optimal placement on wall. Safety tested and UL certified.

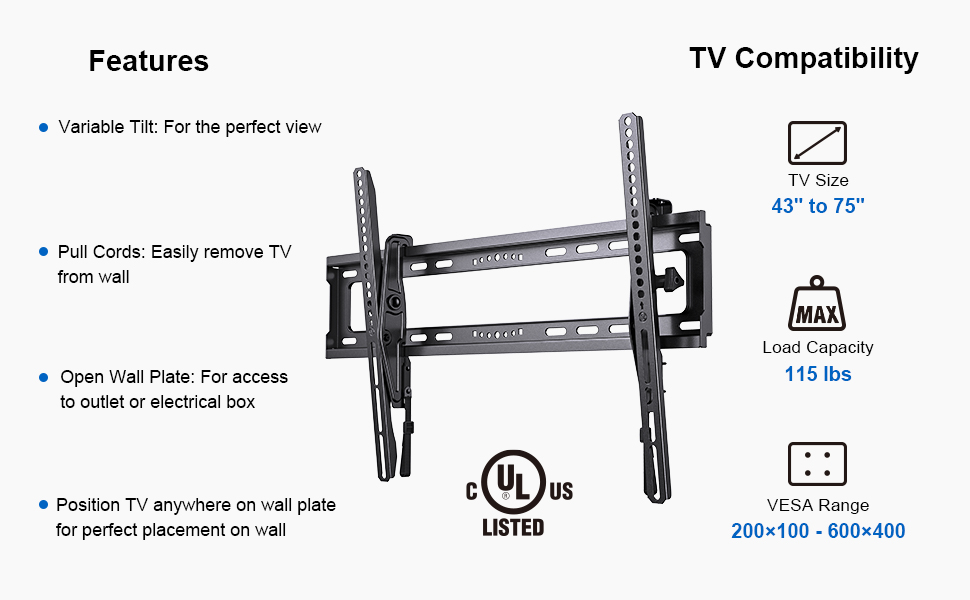

Universal Compatibility – Fits most 43″-75″ TVs with VESA pattern from 200 x 100 mm to 600 x 400mm weighing up to 115 lbs

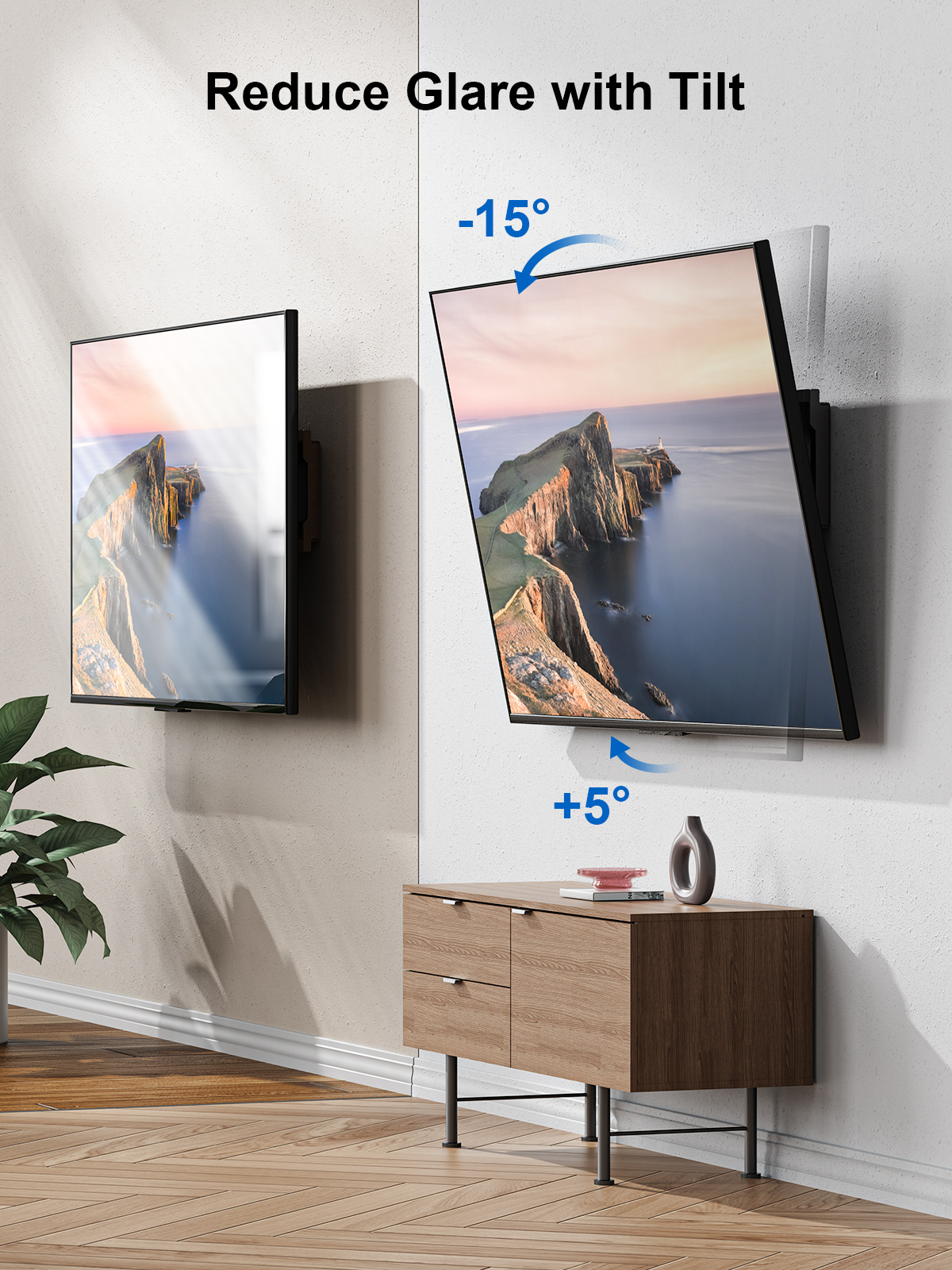

Tilting functionality helps with reducing reflections and enhances the viewing experience

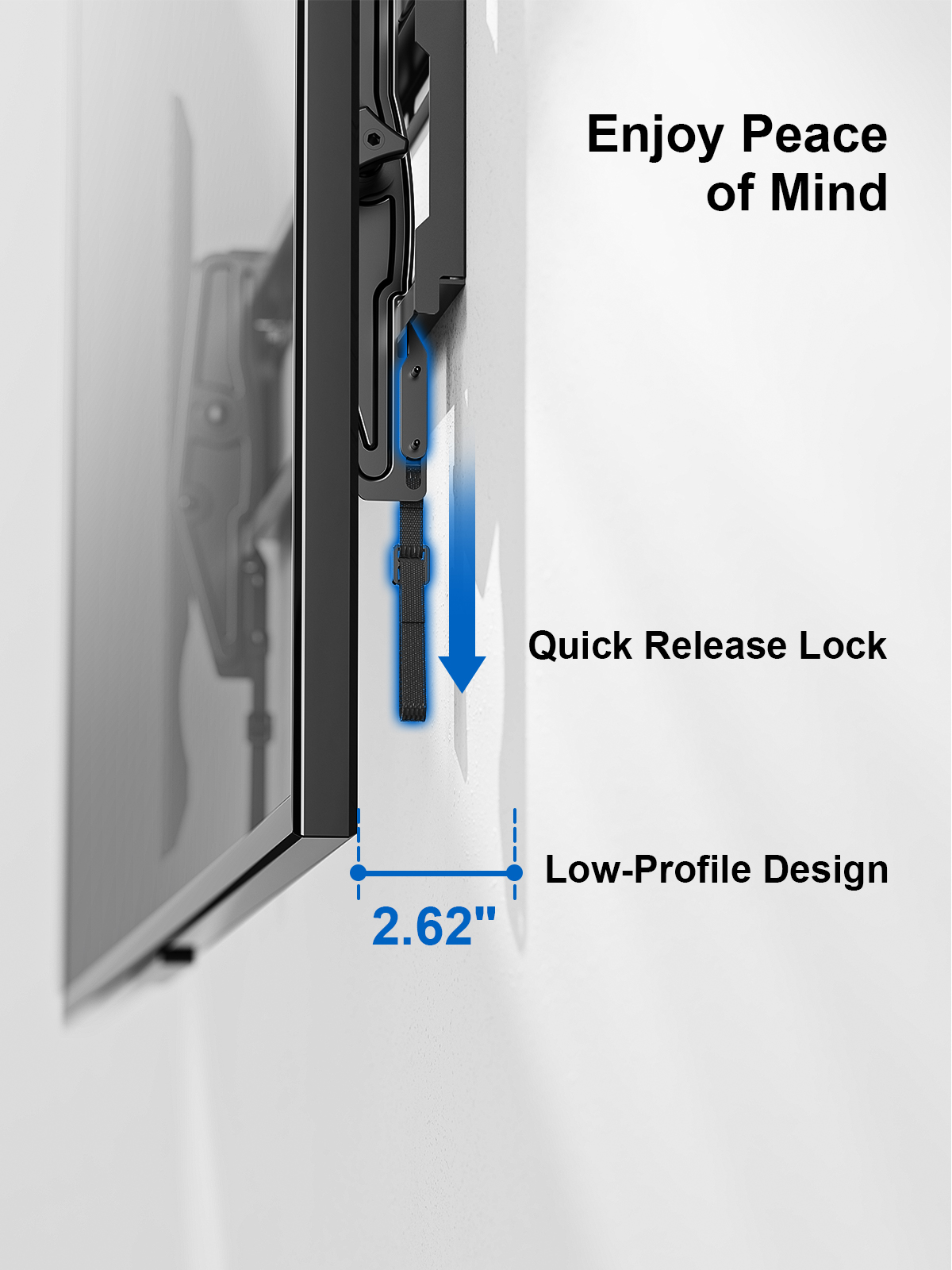

Unique latching mechanism allows TV to be attached securely and removed from wall plate quickly and easily
Horizontal shift allows TV to be moved horizontally on wall plate to allow optimal placement on wall
Easy three step installation. Step-by-step instruction, wall plate template, and universal hardware bag are included in the package

$99.99

Ease of Install

Minimal Reflections

Perfect Placement

Horizontal Shift

UL Listed Certification

Dimensions	26.22 × 16.73 × 2.6 in
Package Dimensions	27.2 x 6.2 x 2.9 in
Cable Management	No
Depth	2.62"
Extension	n/a
Motion Type	Tilting

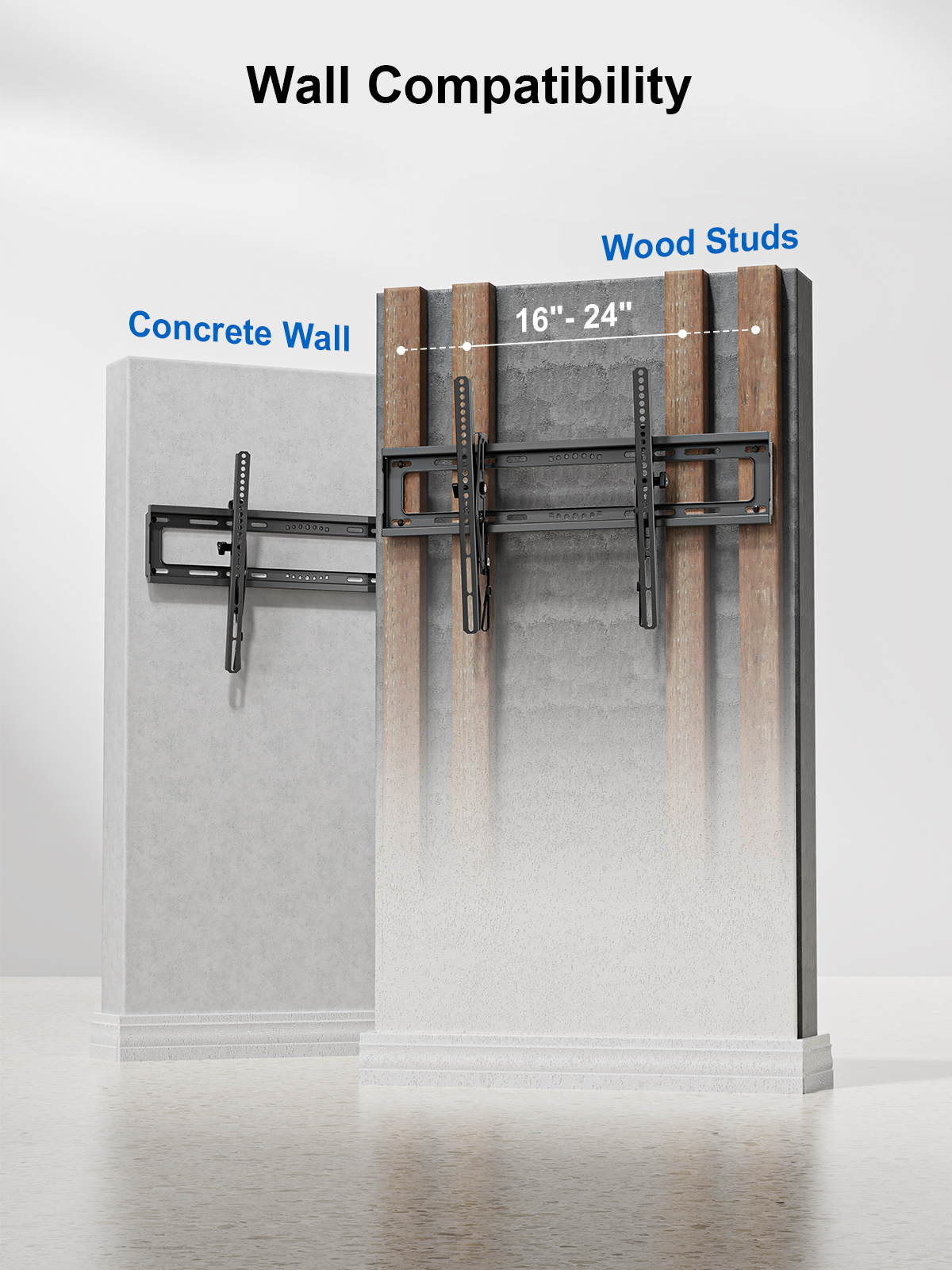

Stud Spacing	Up to 24"
Swivel Range	n/a
Tilt Range	+5 °/ -15°
TV Size Range	43" – 75"
UL Listed	Yes

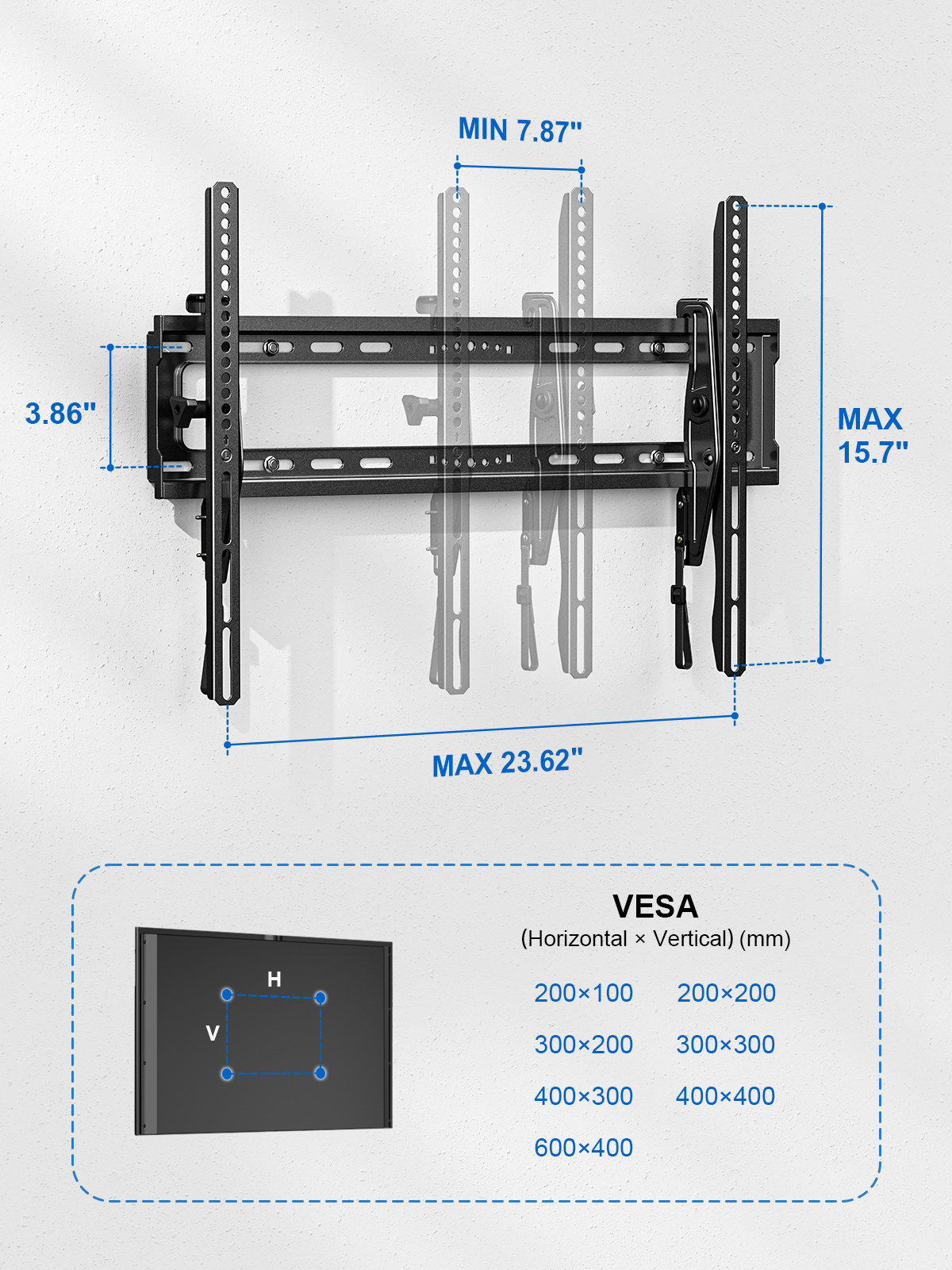

VESA Pattern	100×100, 100×200, 100×300, 100×400, 200×100, 200×200, 200×300, 200×400, 300×100, 300×200, 300×300, 300×400, 400×100, 400×200, 400×300, 400×400, 600×100, 600×200, 600×300, 600×400
Weight Capacity	115 lbs.

ERMTL1-01B Technical Drawing

ERMTL1-01B-Manual 2022.02.17

ERMTL1-01B Sell Sheet
