Extend Fixed Mount Extension Kit for TVs

ERMLX1-EXTKIT

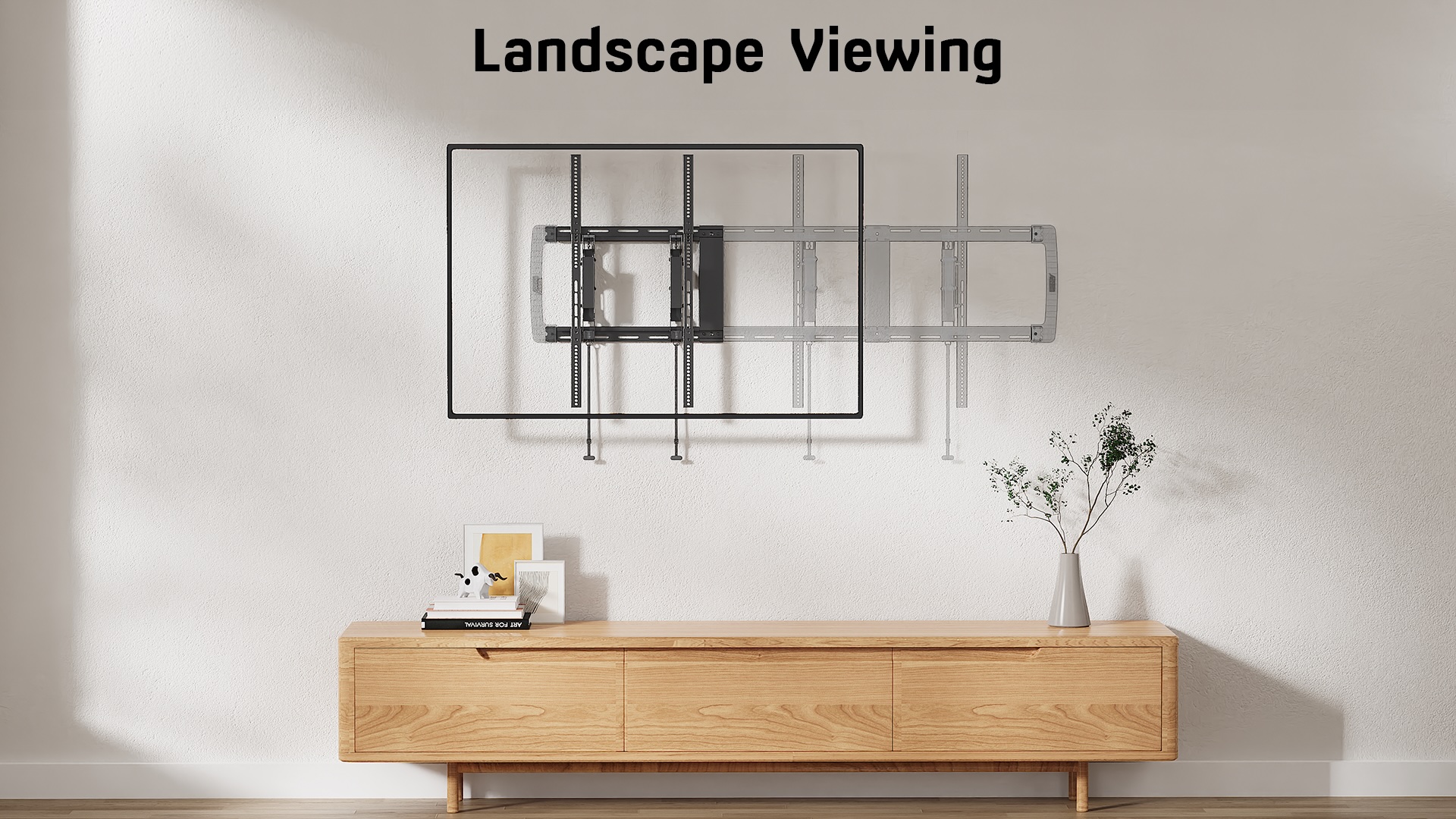

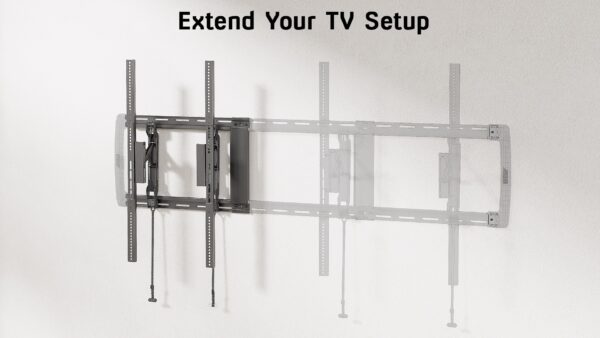

Expand your display capabilities with the ErgoAV Extension Kit—designed to work seamlessly with the ERMLX1-01B Extend Fixed Mount. This modular add-on allows you to daisy chain additional wall plates to create a continuous mounting system for multiple TVs. Whether you’re building a video wall, digital signage setup, or commercial display array, this extension kit gives you the flexibility to mount TVs in either landscape or portrait orientation.

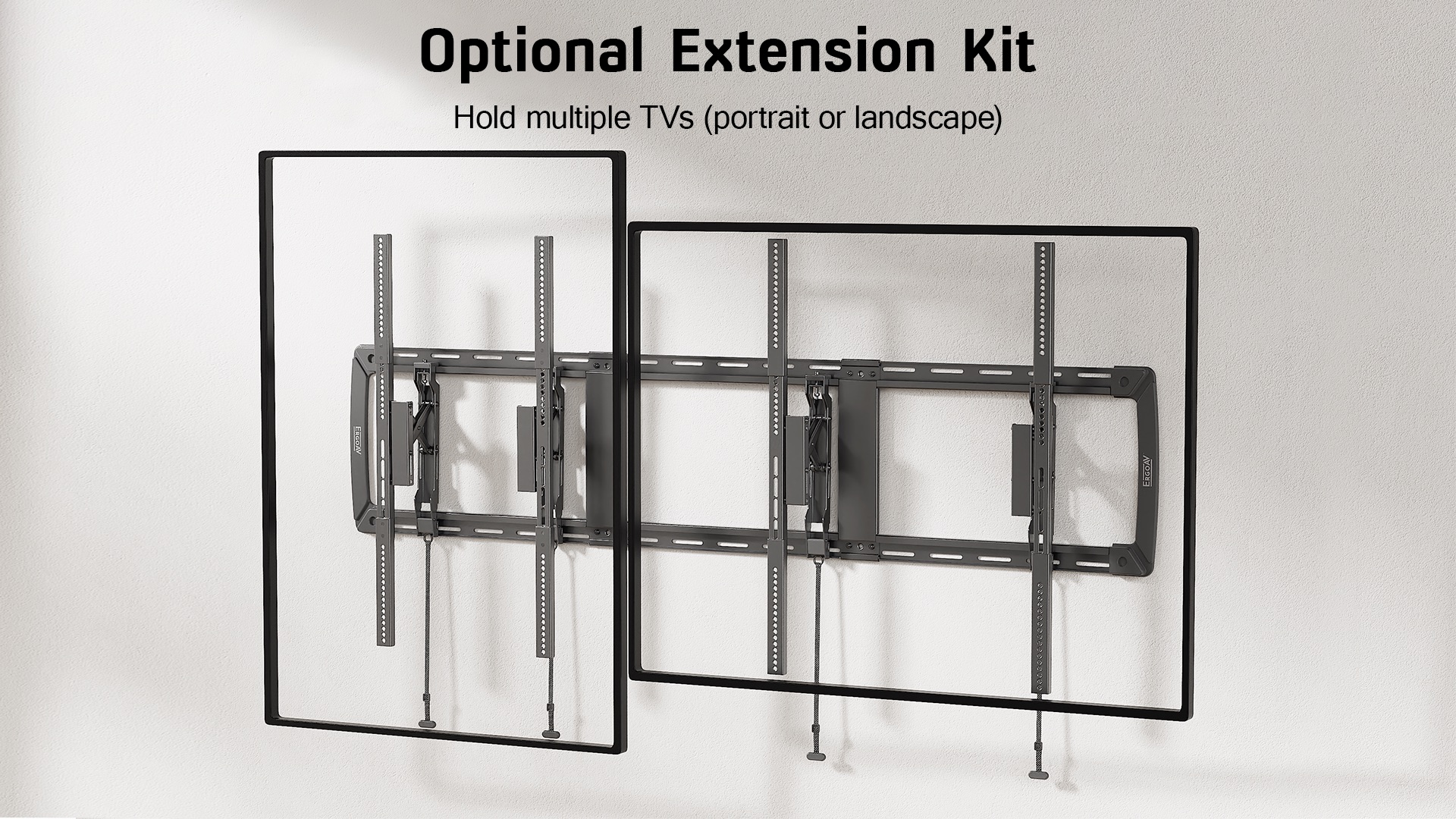

Combined with ERMLX1-01B, it provides multiple TV and monitor mounting solutions on ONE continuous wall plate, extending the VESA compatibility to your needs or multiple versions of it.

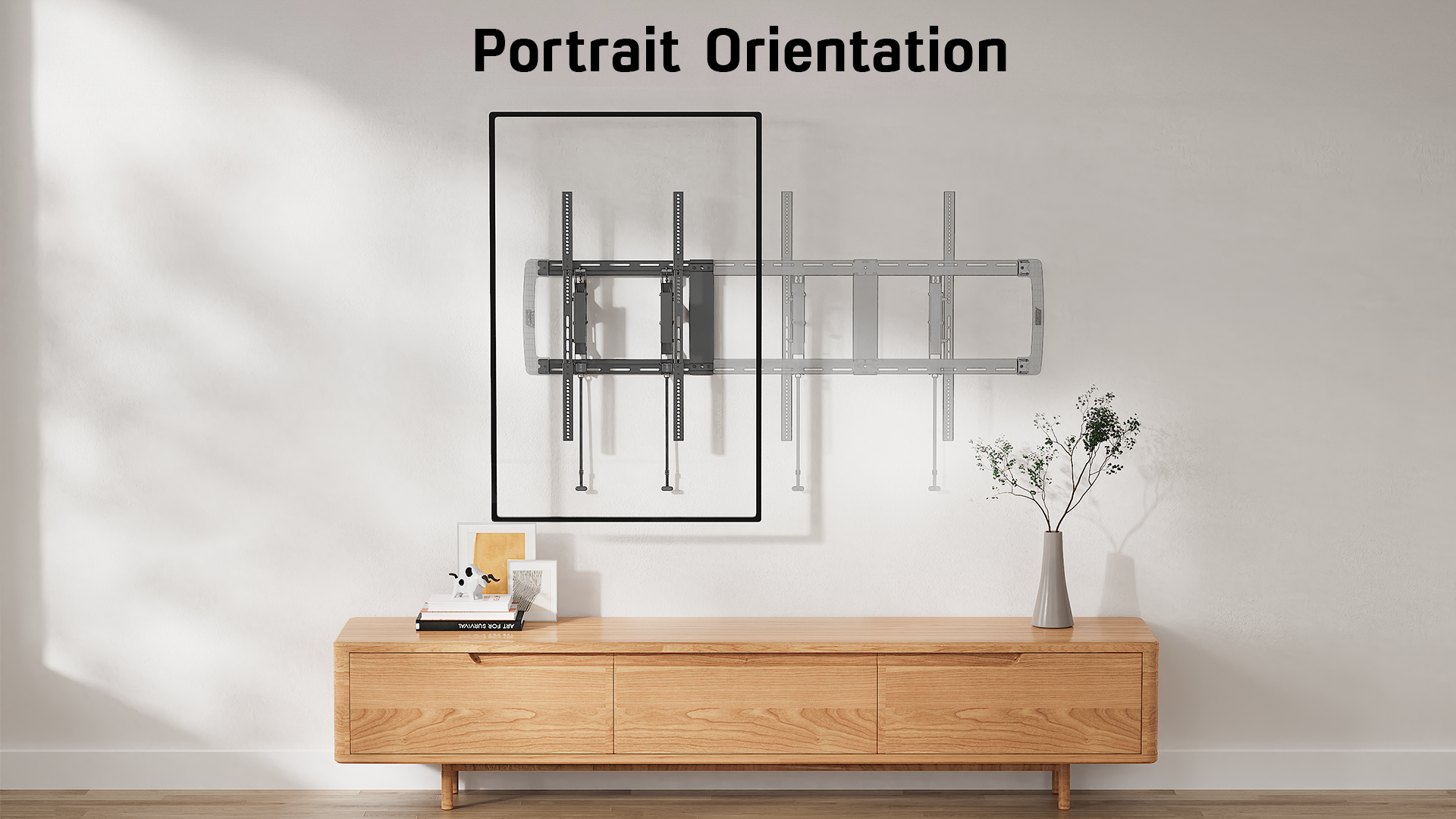

Designed for the ERMLX1-01B extend fixed mount, this extension kit allows mounting an additional TV in portrait or landscape orientation, perfect for TV walls, menu boards, and more.
This extension kit fits VESA patterns from 100 x 100mm to 550 x 850mm with a weight capacity of 132lbs.
It allows the TV to be easily extended 1.8″-5.2″ from the wall and swiveled ±10° for alignment with the sets mounted on the ERMLX1-01B.
Level adjustment of ±2° allows the TV to be properly leveled after installation.

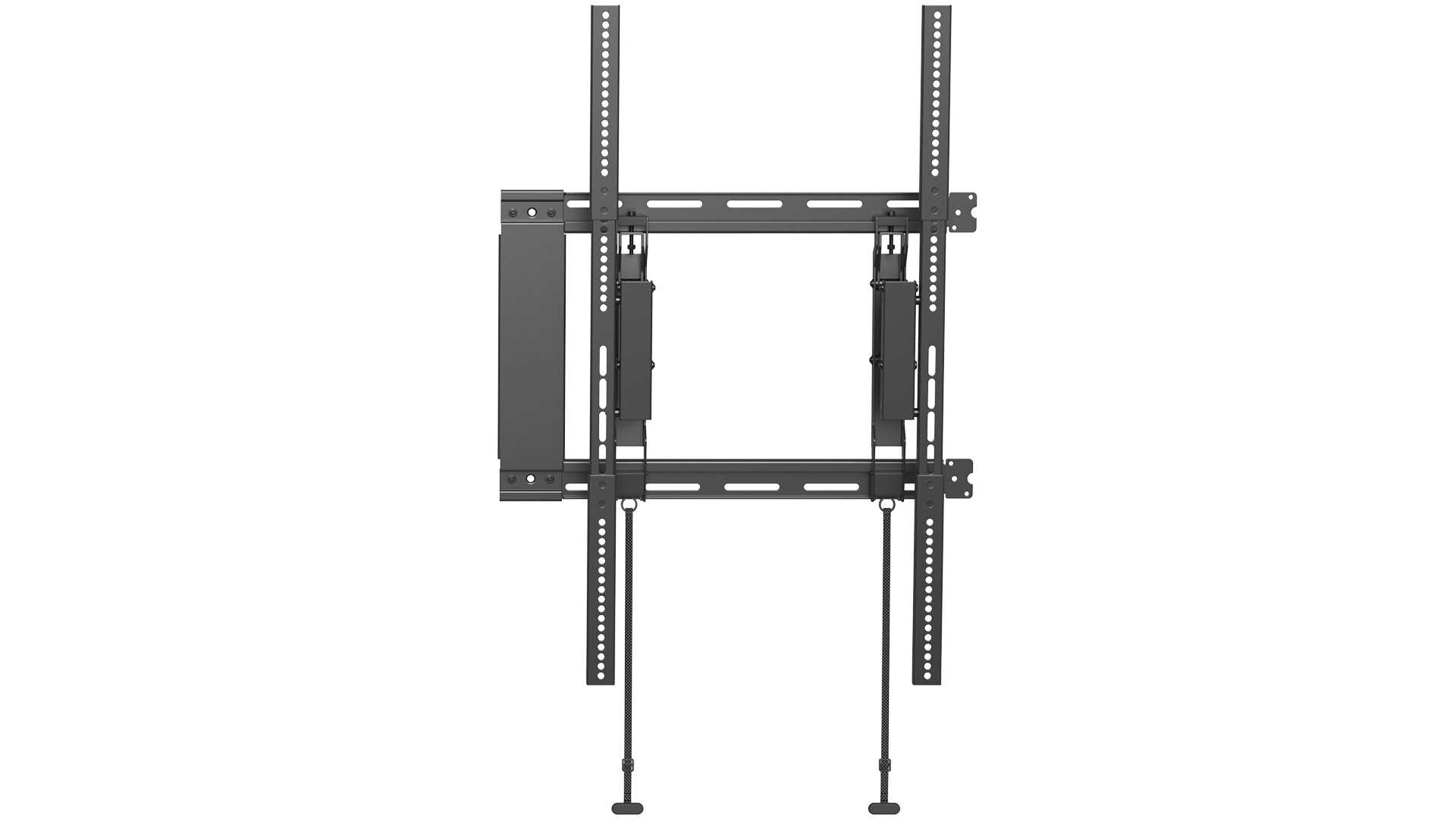

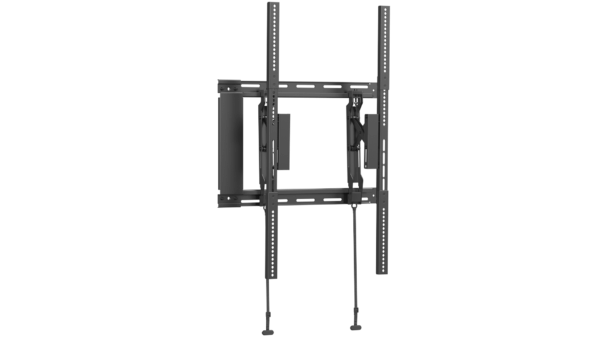

The kit includes the extension wall plate, connection plate, one set of TV brackets, and mounting hardware.
Horizontal shift allows TV to be moved horizontally on wall plate to allow optimal placement on wall.

$179.99

Extension Kit

Easy to Install

Seating Locations

Post-Install Adjustments

Perfect Placement

TV Size Range	32" – 115"(EXTENDED)
UPC	810082201840
Weight Capacity	132 lbs
VESA Pattern	100 x 100 – 550 x 850 or Needed Width
Mount Type	Extend + Tilt
Color	Black
Swivel Range	±10°
Level Adjustment	±2°
Profile	1.8"
Extension	5.2"
Stud Spacing	16" & 24"(EXTENDED)
Wall Supported	Wood Stud, Concrete & Concrete Block
Product Dimensions	23.0″ x 34.6″ x 1.8″
Tilt Range	/

EMRLX1-EXTKIT-sell sheet

ERMLX1-EXTKIT Tech-drawing
